Match your pressure washer's PSI and GPM in blue. The correct orifice size will be listed in the grey area.
Grade
Style
Inflow
Outflow

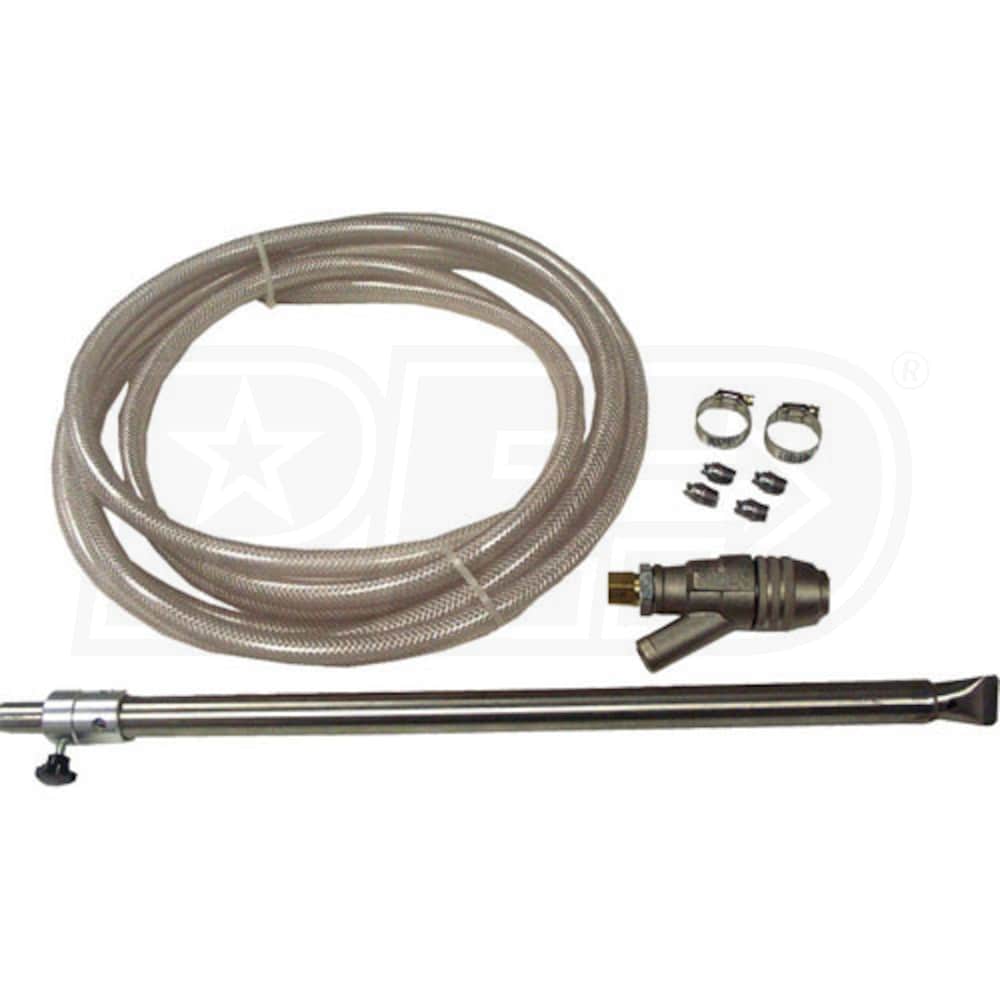

Industrial Wet Sandblaster For Abrasive Cleaning •For suction-fed injection of sand into the water stream •Nozzles are made of tungsen carbide •Aluminum 2' sand probe
Parts Included: •2 metal hose clamps •1" diameter adjustable sand intake •25' polyurethane sand hose
2 Way Valve System (2 ports) •Port 1 (1/4" female threaded plug) input •Port 2 water/sand nozzle (10/16" x 3/16" retangular hole) output
1/4" Female Outlet For 5° - 10° Meg Nozzles •4 IMEG 5° spray angle nozzles included: .03, .04, .05, and .06 •The higher your GPM, the larger number nozzle you should use
Model
Model Number:
AL-TPS450KIT
Manufacturer:
AR
Hose Length:
25 ft
Hose Material:
Polyurethane
Hose Diameter:
Other
Turbo Nozzle:
Sold Separately
Rated PSI
6500 PSI
Weight:
15 Lbs. (6.80 kilograms)
Dimensions:
28L x 12W x 11H (71.12 x 30.48 x 27.94 cm)
Mfr Consumer Warranty:
1 Year
Download Documents
No documents available at this time
1 Question
Q: I've got a 3000PSI 3GPM unit and I would like to use the unit as a wet sodablaster. What would be the best suited tip. And do you have any suggestion as to the PSI I should be running the unit at? I will be cleaning rough concrete of stains & paint. And an open grille aluminum roll up door. by Dru on September 29, 2011
A: You would want to use the .03 or .04 nozzle size with this sandblasting kit in conjuction with your pressure washer. I would suggest running your pressure washer at full 3000 psi especially when cleaning the concrete surface. You will more than likely want to lower the pressure down to about 2500 psi when cleaning the aluminum door you mentioned. I would suggest starting at a lower psi and see what amount of pressure performs well. by Bill, Product Expert
