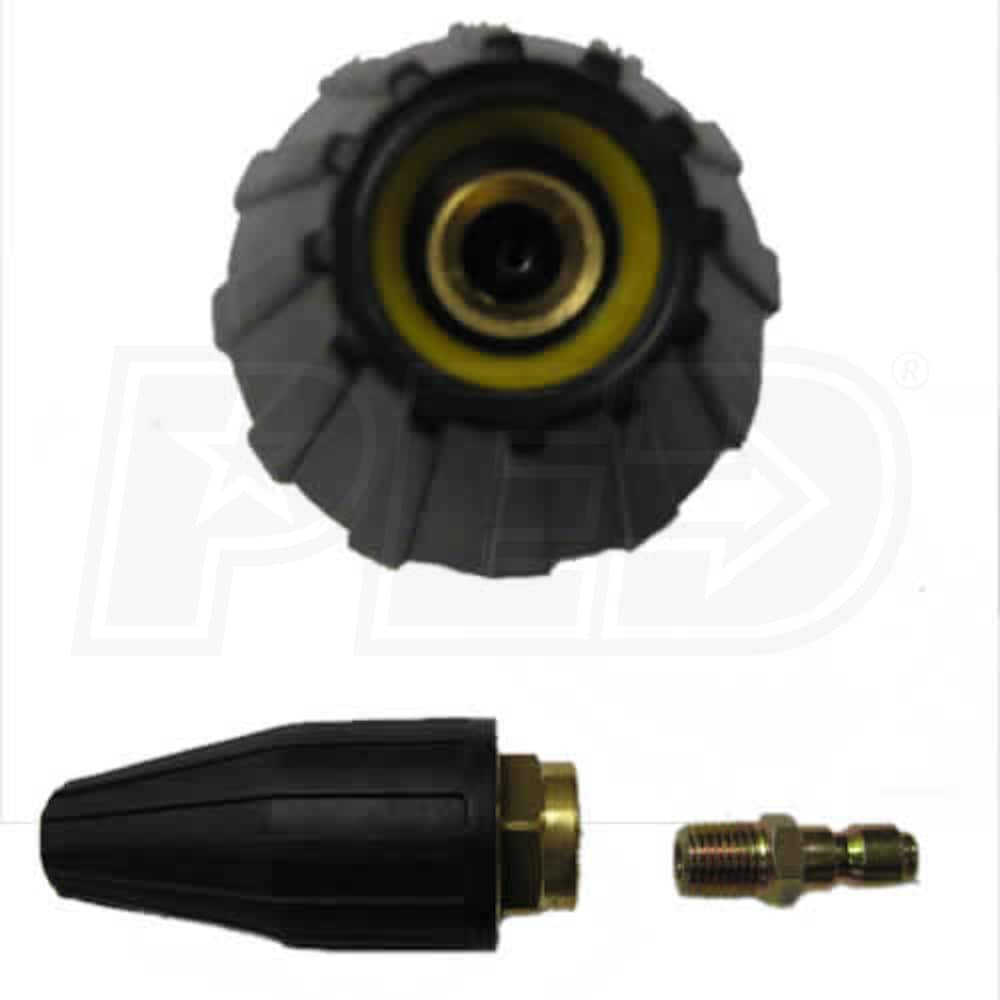

AR AL-TTR16-20 - 2.75 Orifice Turbo Nozzle (Consumer Gas)

AR 2.75 Orifice Turbo Nozzle (Consumer Gas)

View Enlarged Image of the AR AL-TTR16-20

Model AL-TTR16-20

Be the First
to Write a Review

AR 2.75 Orifice Turbo Nozzle (Consumer Gas)

Product Discontinued

[x] Close

GPM	1000 PSI	1200 PSI	1250 PSI	1300 PSI	1500 PSI	1800 PSI	2000 PSI	2100 PSI	2200 PSI
2	4	3.5	3.5	3.5	3.5	3	3	3	3
2.5	5	4.5	4.5	4.5	4	3.5	3.5	3.5	3.5
3	6	5.5	5.5	5.5	5	4.5	4.5	4	4
3.5	7	6.5	6.5	6	5.5	5	5	5	4.5
4	8	7.5	7	7	6.5	6	5.5	5.5	5.5

GPM	2300 PSI	2400 PSI	2500 PSI	3000 PSI	3200 PSI	3500 PSI	4000 PSI	5000 PSI
2	2.5	2.5	2.5	2.5	2	2	2	2
2.5	3.5	3	3	3	3	2.5	2.5	2
3	4	4	4	3.5	3.5	3	3	2.5
3.5	4.5	4.5	4.5	4	4	3.5	3.5	3
4	5.5	5	5	4.5	4.5	4.5	4	3.5

Match your pressure washer's PSI and GPM in blue. The correct orifice size will be listed in the grey area.

Grade	Style
Inflow	Outflow

Increases Cleaning Speed by 50%
•For blasting and removing stubborn and encrusted stains
•High-pressure yellow pencil jet rotating at 3000 RPMs

Quick-Connection Plug Included
•Included one male 1/4" plug with quick-connect (AL-PLUG 1/4mB)
•Simply snap turbo nozzle into your 1/4" quick-connect lance

Pressure Rating
•Maximum pressure of 2400 PSI (165 Bars)
•Maximum temperature of 104 degrees F

Compatibility
•Fits most consumer-grade gas power washers
•NOT designed for electric or professional-grade pressure washers

Model
	Model Number:	AL-TTR16-20
	Manufacturer:	AR
	Turbo Nozzle:	Included
	Rated PSI	2400 PSI
	Weight:	1 Lbs. (0.45 kilograms)
	Dimensions:	4L x 2W x 2H (10.16 x 5.08 x 5.08 cm)
	Mfr Consumer Warranty:	1 Year
