Karcher KG3035G1.1 3500 PSI 3.0 GPM Replacement Triplex Pressure Washer Pump
Model:
9.803-819.0
+
Share This Product
Recommended Accessories

Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Professional
Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
- Karcher KG-1.1 Replacement Triplex Plunger Pump
- 1" hollow shaft diameter
- Designed for 3500 PSI discharge at 3 GPM & 3400 RPM
- Maximum inlet pressure: 125 PSI; max temperature: 185°F; 15mm bore; 7.8mm stroke
- Die Cast, Anodized Aluminum Crankcase
- Large capacity 14 oz. oil bath prolongs pump life
- Forged crankshaft & heavy-duty crankshaft bearing last longer
- Unloader, Inlet & Outlet Fittings Not Included
- Forged brass manifold has an exclusive lifetime warranty
- Solid Ceramic Plungers
- Mirror finish & corrosion resistance for maximum performance
- Precision Oil Dipstick
- Allows proper ventilation of the crankcase
- Rugged Components
- Stainless steel inlet & discharge valves, long-life seals
- Connecting rods have lubrication channels to prevent wear
- Be Sure To Measure The Shaft & Flange Bolt Holes Accurately!

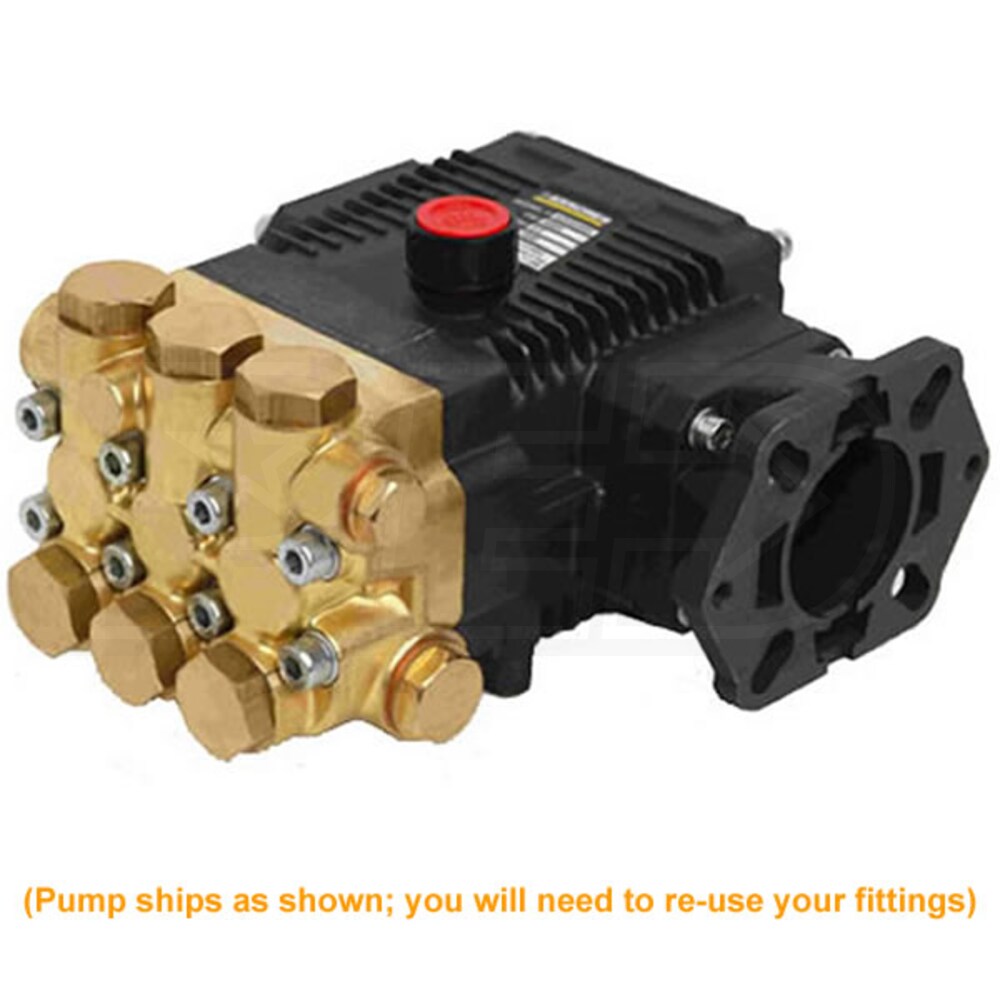

- Pump is shipped as shown; you will need to re-use your fittings or purchase them separately
- There is a 25% restock fee on returned pumps
- Please refer to the Spec Sheet PDF under the Specs tab
- Please Call Us For Sizing Assistance w/ Information Below:
- 1. Age of Pump and Model # (must be no more than 15-yrs old)
- 2. Is the pump Vertical or Horizontal
- 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
- 4. Engine Brand and HP (model # if available would be helpful)
- ***Shaft Size Measurements Must Be Precise***
California residents see
Warning: This product can expose you to chemicals including Diisononyl phthalate (DINP) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
9.803-819.0

Overview
Weight
18 Pounds
Consumer Warranty
7 Years
Product Length
8.5 Inches
Product Width
9.5 Inches
Product Height
6.5 Inches
Accessories
Pump Brand
Karcher
Pump Type
Triplex Plunger
Shaft Size
1
Pump Design
Horizontal
Adjustable Pressure
Yes
Accessory Grade
Professional
Accessory Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Maximum GPM
Maximum GPM
Gallon per Minute
3
Rated PSI
3500 PSI
Chemical Injections
Sold Separately
