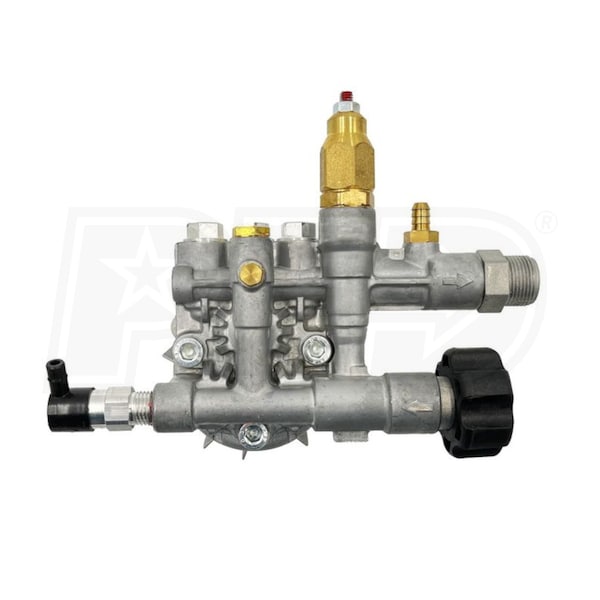

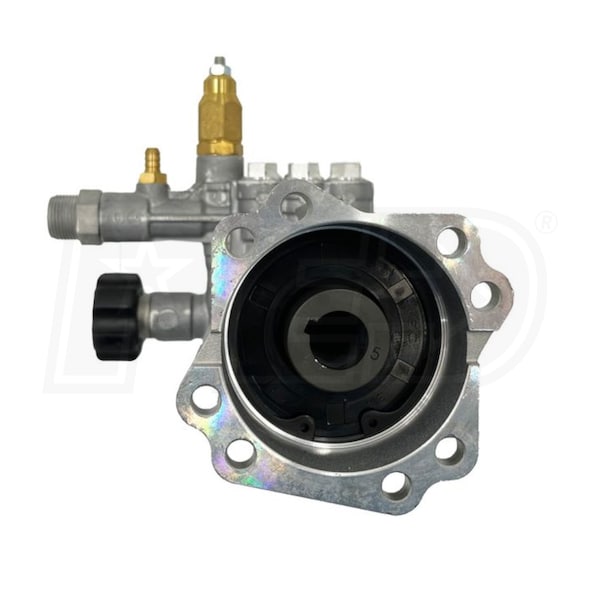

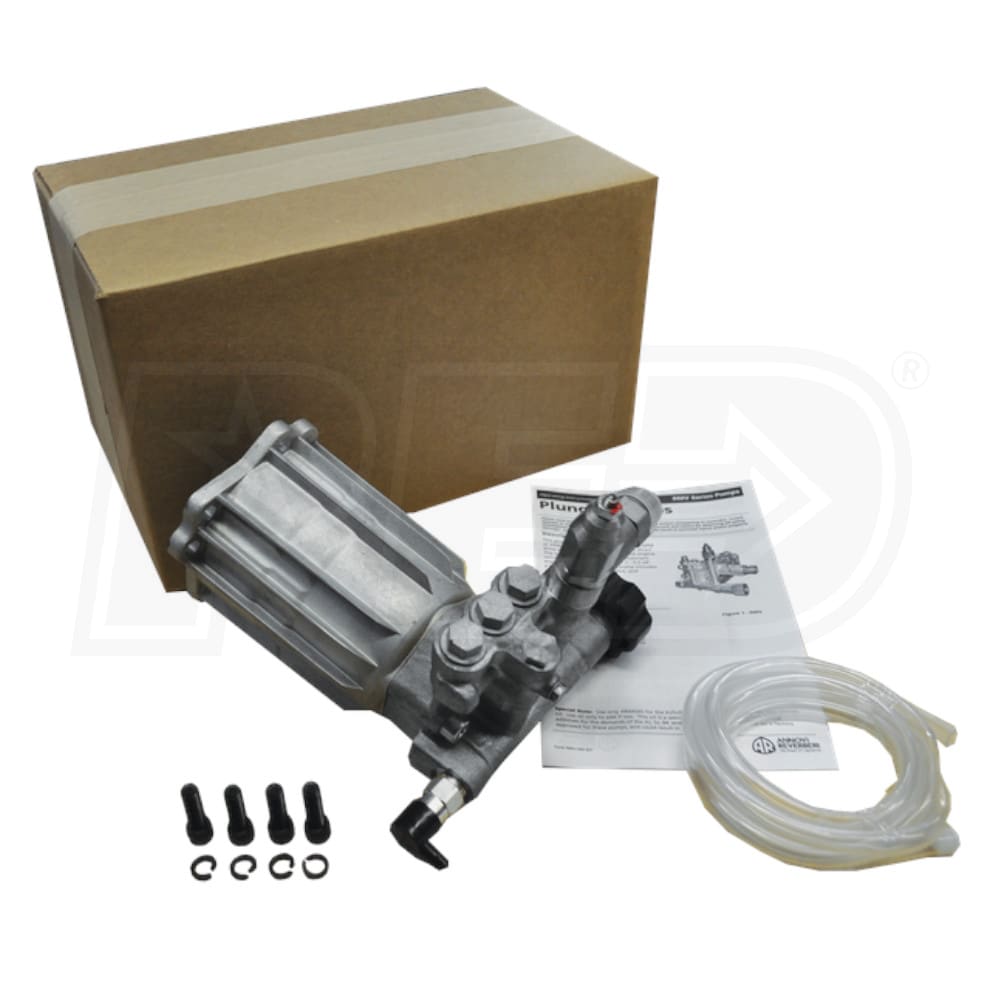

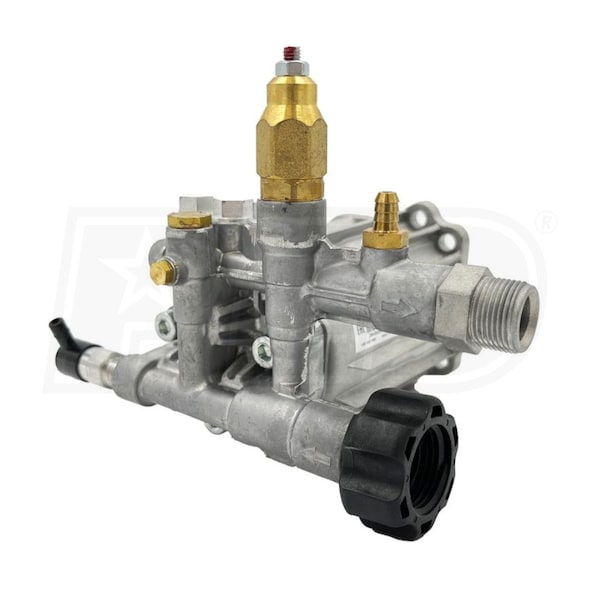

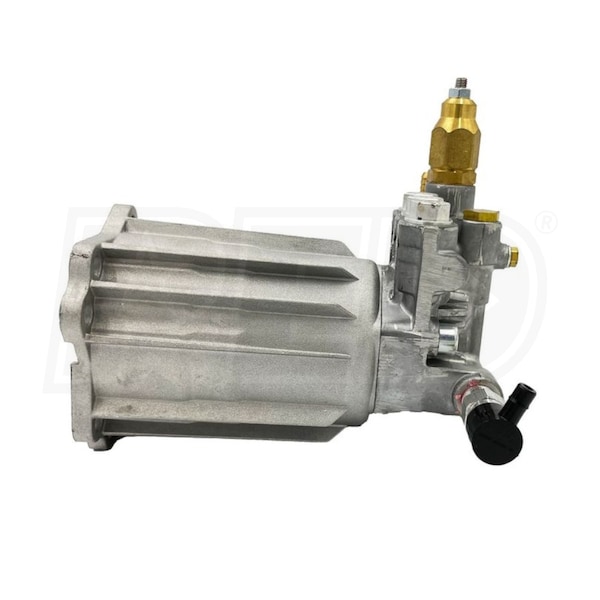

AR RMV 2400 PSI 2.5 GPM (3/4" Shaft) Axial Pressure Washer Pump Kit
Model:
RMV25G24D-PKG
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Consumer
Style
Gas
Inflow
Garden Hose (Female)
Outflow
22m Threaded (Male)
- High Quality Replacement For Worn Out Pumps
- Fits many homeowner-type pressure washers
- Save money by replacing the pump instead of buying a new power washer
- Direct Drive Horizontal Axial Replacement Pump
- Built-in brass unloader relieves and pressure control valve
- Aluminum pump head is sturdy and long-lasting; resists corrosion
- Constructed with frictionless aluminum connecting rods and pistons
- Thermal Relief Valve (TPP140-1/4A)
- Protects the pump from overheating while in bypass mode
- Releases small amounts of hot water and intakes cooler water to extend pump life
- Maintenance-Free Crankcase
- Prefilled with oil and sealed for simple installation, no oil changes
- Includes Siphon Hose
- Draws chemicals or soap into the water stream after the pump
- Allows a wide variety of chemicals to be used without harming your pump
- Standard SAE Gas Engine Flange
- SAE standard bolt pattern fits most gas-powered pressure washers
- Designed for gas-powered pressure washers with horizontal engines
- 3/4” Hollow Shaft Handles 3400 RPM
- Power EBHP 4.0
- Oil capacity 2.2 ounces
- Max Temperature 140° F
- Plunger bore 12mm, plunger stroke 9.7mm
- Water inlet 3/4" Female garden hose; outlet: 22mm Male thread
- Be Sure To Measure Shaft & Flange Bolt Holes Accurately!
- There is a 25% restock fee on returned pumps
- (Dimensions on the spec sheet download under the Specs tab)
- Pump ships bare so you'll need to re-use your connectors or purchase them separately
- Please Call Us For Sizing Assistance w/ Information Below:
- 1. Age of Pump and Model # (must be no more than 15-yrs old)
- 2. Is the pump Vertical or Horizontal
- 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
- 4. Engine Brand and HP (model # if available would be helpful)
- ***Shaft Size Measurements Must Be Precise***
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
RMV25G24D-PKG
Overview
Product Category
Pressure Washer Pumps
Weight
7.2 Pounds
Consumer Warranty
1 Year
Product Length
7.18 Inches
Product Width
5.2 Inches
Product Height
5.8 Inches
Power Type
Gas
UPC
192216230279
Accessories
Pump Brand
AR
Pump Type
Axial Cam
Shaft Size
3/4
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Consumer
Accessory Style
Gas
Inflow
Garden Hose (Female)
Outflow
22m Threaded (Male)
Maximum GPM
Maximum GPM
Gallon per Minute
2.5
Rated PSI
2400 PSI
Temperature Rating
140
Chemical Injections
Siphon Tube
