AR SRMW 2800 PSI 2.4 GPM (7/8" Shaft) Vertical Axial Pressure Washer Pump (SX Style)

Model:

SRMW24G28-EZ-SX

Write A Review
$149.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Oct 7th
Shipping to60601
AR SRMW 2800 PSI 2.4 GPM (7/8
AR SRMW 2800 PSI 2.4 GPM (7/8" Shaft) Vertical Axial Pressure Washer Pump (SX Style)
Model: SRMW24G28-EZ-SX
$149.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Pressure Washers Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Prosumer

Style

Gas

Pump Brand

AR

Inflow

3/4" Threaded (Female)

Outflow

22m Threaded (Male)

  • High Quality Replacement For Worn Out Pumps
  • Fits many homeowner-type pressure washers (not Karcher)
  • Vertical Triplex Pump With Unloader
  • Mounts under engine; direct drive for convenience and durability
  • Built-in pressure control valve; 140 degree max temperature
  • Standard Matching Gasoline Mounting Flange
  • Convenient connection to 7/8" gas engine flange
  • 7/8" hollow shaft spins at 3400 rpm
  • Bore diameter 12mm; Stroke 9.7 mm
  • Includes unloader & chemical injection system
  • 4.6 HP pump; Crankshaft ID Stamp 3
  • Powerful And Versatile
  • Will push 2.5 GPM @ 2800 PSI- ideal for 4 - 7HP engines
  • Water inlet 3/4" Female garden hose; outlet: 22MM Male thread

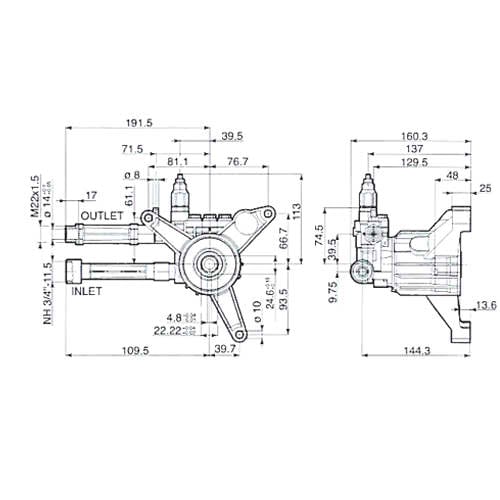

  • Installation Details: (see installation drawings)

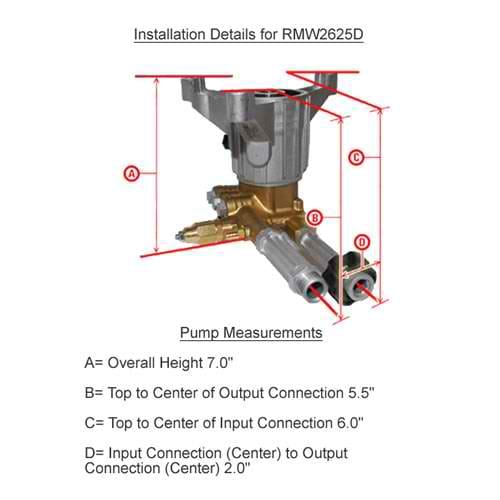

  • 7" Overall height; 5.5" from top to center of output connection
  • 6" from top to center of input connection; 2" from center of input to center of output connection
  • Pump ships bare so you'll need to re-use your connectors & siphon tube

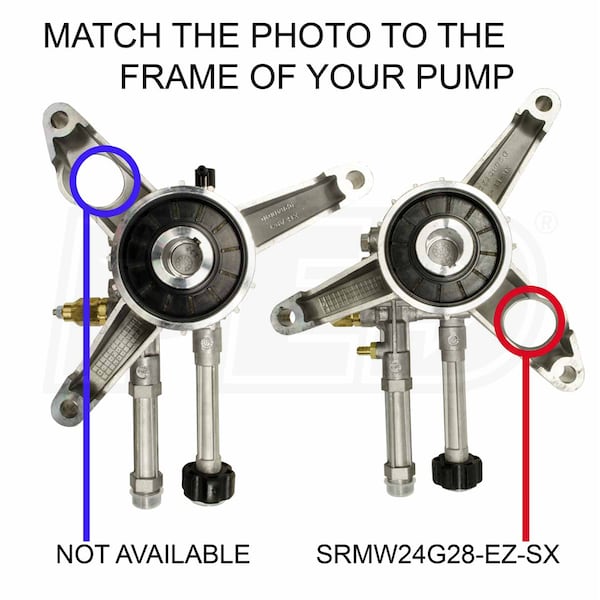

  • Please Measure Shaft And Flange Bolt Holes Carefully!
  • There is a 25% restock fee on returned pumps
  • Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)
  • ***Shaft Size Measurements Must Be Precise***
California residents see
Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

SRMW24G28-EZ-SX
specs product image PID-109064
Pump
Pump Brand
AR
Pump Type
Axial Cam
Adjustable Pressure
No
Chemical Injection
Siphon Tube
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
7.3 Pounds
Consumer Warranty
1 Year
Product Length
6 1/4 Inches
Product Width
9 1/4 Inches
Product Height
5 7/8 Inches
UPC
192216054851
Accessories
Pump Brand
AR
Pump Type
Triplex Plunger
Shaft Size
7/8
Pump Design
Vertical
Adjustable Pressure
No
Accessory Grade
Prosumer
Accessory Style
Gas
Inflow
3/4" Threaded (Female)
Outflow
22m Threaded (Male)
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
2.4
Rated PSI
2800 PSI
Chemical Injections
Sold Separately
