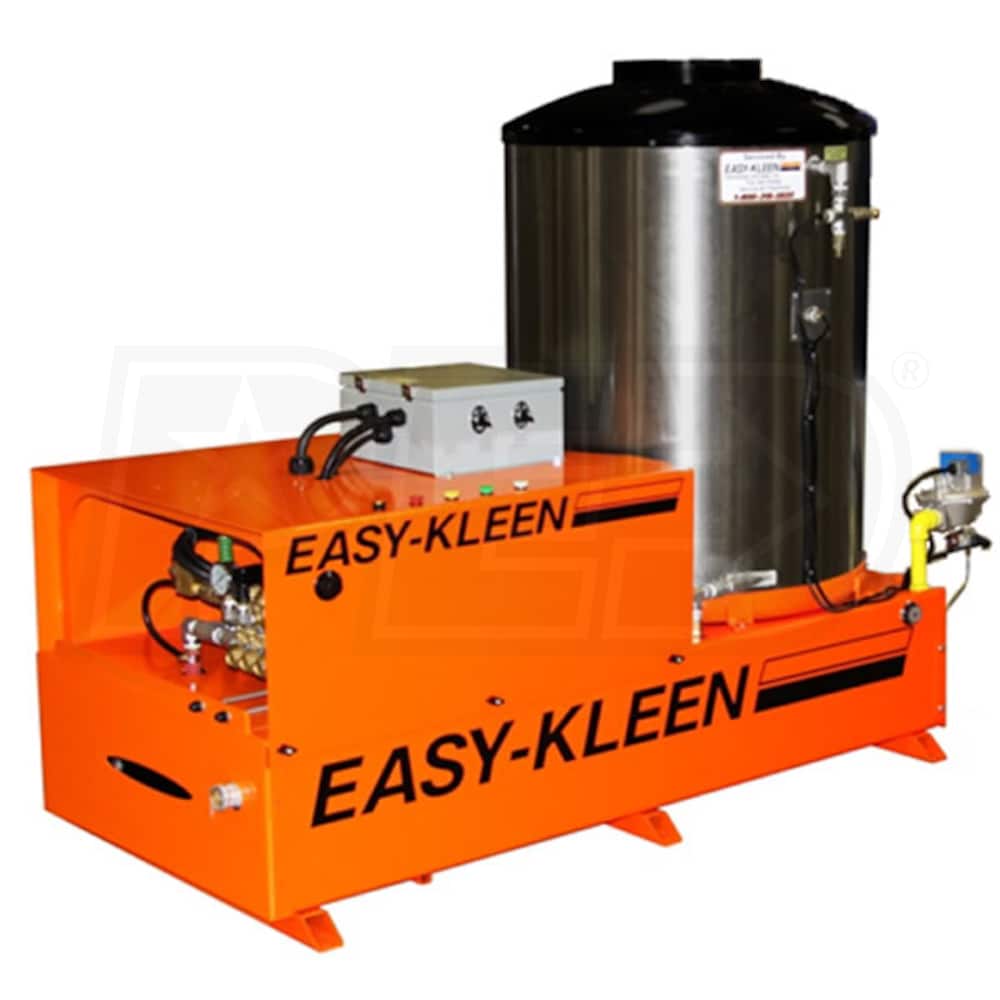

Easy-Kleen 3000 PSI (Natural Gas - Hot Water) Auto Stop Belt-Drive Stationary Pressure Washer (220V 1-Phase)
Model: EZN3004-1-A
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Water Pressure
3000
PSI
Water Flow
4
GPM
Cleaning Speed
12000
Cleaning Units
Engine
7.5 HP
Grade
Commercial
Style
Electric Hot Water
Water Pressure
3000 PSI
Water Flow
4 GPM
Cleaning Speed
12000 Cleaning Units
Engine
7.5 HP
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- 7.5-HP Techtop Electric-Powered Pressure Washer With Natural Gas-Fueled Water Heater
- Requires 220 volt, single-phase power
- Quick Kleen 390,000 BTU Burner System (Must Be Vented Properly If Used Indoors)
- Slide-out tray makes maintenance simple; jets have 6 oxygen orifice inlets to ensure maximum burn & minimize CO
- Adjustable thermostat for efficiency, dependability & serviceability
- NEMA 4 Water-Tight Control Panel & Quick-Adjust Air Flow Vents
- Hinged cover provides easy service access; vents maximize burner efficiency by easily adjusting the air flow
- Tip-Ahead Shroud With Integrated Belt Guard
- Loosen the T-Nuts on both sides of the unit & pull the shroud forward for fast motor & pump access
- Belt guard is integrated into the design of the shroud for maximum serviceability & safety
- 7.5-HP Totally Enclosed, Fan Cooled, Full Frame 1750 RPM Electric Motor
- High efficiency motor equipped with 1.25 service factor to meet demand
- General Pump Triplex Plunger Pump With Auto-Stop
- Produces up to 4 GPM at 3000 PSI; high volume gets big jobs done faster
- Belt Drive With Torsion Bar Spring-Loaded Belt Tensioner
- Large diameter pulleys are used to reduce belt wear; easily accessed under the shroud
- Rugged 11-Gauge & 1/4" Steel, Fully Welded Steel Frame
- Powder-coated finish helps protect against rust & corrosion
- Also Included:
- Gun & wand assembly, 50 feet of high pressure hose, high pressure chemical injection, 5 nozzles & poly float tank
Specifications
Motor
Motor Type
Continuous Duty
Motor Voltage
230-Volt Single-Phase
Consumer Motor Warranty
1.5 Years
Commercial Motor Warranty
1.5 Years
Engine
HP
7.5 HP
Pump
Pump Brand
General
Pump Type
Triplex Plunger
Adjustable Pressure
Yes
Chemical Injection
Down-Stream
Water Temperature
Hot
Consumer Pump Warranty
5 Years
Commercial Pump Warranty
5 Years
Water Pressure
3000 PSI
Water Flow
4 GPM
Housing
Frame Type
Stationary
Wheels
Not Applicable
Hose
Hose Length
50 Feet
Hose Material
Rubber
Hose Diameter
3/8 Inch
Hose Connections
Quick-Connect
Spray Gun
Spray Gun Connection
Quick-Connect
Spray Gun Grade
Professional
Spray Gun Wand
Single Wand
Spray Tips
Quick Connect Tips (5)
Turbo Nozzle
Sold Separately
Burner
Burner Fuel
Natural Gas
Temperature Control
Adjustable
Overview
Weight
780 Pounds
Consumer Warranty
90 Days
Commercial Warranty
90 Days
Product Length
54 Inches
Product Width
26 Inches
Product Height
49 Inches
Power Type
Electric
Grade
Style
Water Pressure
3000
PSI
Water Flow
4
GPM
Cleaning Speed
12000
Cleaning Units
Engine
7.5 HP
Grade
Commercial
Style
Electric Hot Water
Water Pressure
3000 PSI
Water Flow
4 GPM
Cleaning Speed
12000 Cleaning Units
Engine
7.5 HP
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- 7.5-HP Techtop Electric-Powered Pressure Washer With Natural Gas-Fueled Water Heater
- Requires 220 volt, single-phase power
- Quick Kleen 390,000 BTU Burner System (Must Be Vented Properly If Used Indoors)
- Slide-out tray makes maintenance simple; jets have 6 oxygen orifice inlets to ensure maximum burn & minimize CO
- Adjustable thermostat for efficiency, dependability & serviceability
- NEMA 4 Water-Tight Control Panel & Quick-Adjust Air Flow Vents
- Hinged cover provides easy service access; vents maximize burner efficiency by easily adjusting the air flow
- Tip-Ahead Shroud With Integrated Belt Guard
- Loosen the T-Nuts on both sides of the unit & pull the shroud forward for fast motor & pump access
- Belt guard is integrated into the design of the shroud for maximum serviceability & safety
- 7.5-HP Totally Enclosed, Fan Cooled, Full Frame 1750 RPM Electric Motor
- High efficiency motor equipped with 1.25 service factor to meet demand
- General Pump Triplex Plunger Pump With Auto-Stop
- Produces up to 4 GPM at 3000 PSI; high volume gets big jobs done faster
- Belt Drive With Torsion Bar Spring-Loaded Belt Tensioner
- Large diameter pulleys are used to reduce belt wear; easily accessed under the shroud
- Rugged 11-Gauge & 1/4" Steel, Fully Welded Steel Frame
- Powder-coated finish helps protect against rust & corrosion
- Also Included:
- Gun & wand assembly, 50 feet of high pressure hose, high pressure chemical injection, 5 nozzles & poly float tank
Specifications
Motor
Motor Type
Continuous Duty
Motor Voltage
230-Volt Single-Phase
Consumer Motor Warranty
1.5 Years
Commercial Motor Warranty
1.5 Years
Engine
HP
7.5 HP
Pump
Pump Brand
General
Pump Type
Triplex Plunger
Adjustable Pressure
Yes
Chemical Injection
Down-Stream
Water Temperature
Hot
Consumer Pump Warranty
5 Years
Commercial Pump Warranty
5 Years
Water Pressure
3000 PSI
Water Flow
4 GPM
Housing
Frame Type
Stationary
Wheels
Not Applicable
Hose
Hose Length
50 Feet
Hose Material
Rubber
Hose Diameter
3/8 Inch
Hose Connections
Quick-Connect
Spray Gun
Spray Gun Connection
Quick-Connect
Spray Gun Grade
Professional
Spray Gun Wand
Single Wand
Spray Tips
Quick Connect Tips (5)
Turbo Nozzle
Sold Separately
Burner
Burner Fuel
Natural Gas
Temperature Control
Adjustable
Overview
Weight
780 Pounds
Consumer Warranty
90 Days
Commercial Warranty
90 Days
Product Length
54 Inches
Product Width
26 Inches
Product Height
49 Inches
Power Type
Electric
Product Specs
+−
Specifications
Motor
Motor Type
Continuous Duty
Motor Voltage
230-Volt Single-Phase
Consumer Motor Warranty
1.5 Years
Commercial Motor Warranty
1.5 Years
Engine
HP
7.5 HP
Pump
Pump Brand
General
Pump Type
Triplex Plunger
Adjustable Pressure
Yes
Chemical Injection
Down-Stream
Water Temperature
Hot
Consumer Pump Warranty
5 Years
Commercial Pump Warranty
5 Years
Water Pressure
3000 PSI
Water Flow
4 GPM
Housing
Frame Type
Stationary
Wheels
Not Applicable
Hose
Hose Length
50 Feet
Hose Material
Rubber
Hose Diameter
3/8 Inch
Hose Connections
Quick-Connect
Spray Gun
Spray Gun Connection
Quick-Connect
Spray Gun Grade
Professional
Spray Gun Wand
Single Wand
Spray Tips
Quick Connect Tips (5)
Turbo Nozzle
Sold Separately
Burner
Burner Fuel
Natural Gas
Temperature Control
Adjustable
Overview
Weight
780 Pounds
Consumer Warranty
90 Days
Commercial Warranty
90 Days
Product Length
54 Inches
Product Width
26 Inches
Product Height
49 Inches
Power Type
Electric
