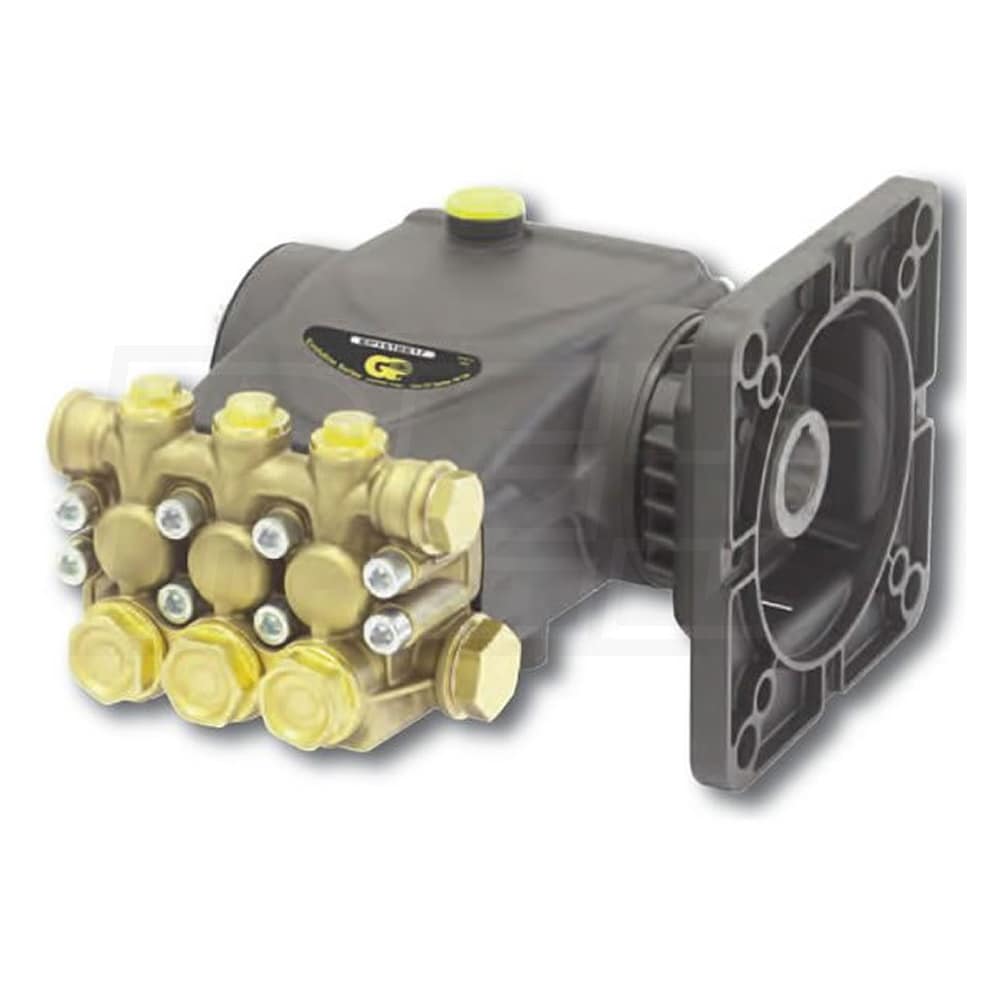

General Pump Evolution 2500 PSI 4 GPM Hollow Shaft Electric Flange Replacement Triplex Plunger Pump (1750 RPM)
General Pump Evolution 2500 PSI 4 GPM Hollow Shaft Electric Flange Replacement Triplex Plunger Pump (1750 RPM)
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Grade
Professional
Style
Electric
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Features
Features
- Quality Replacement For Worn Out Pumps
- New forged brass manifold increases working pressure to 2500 PSI
- New Pump Design
- Connecting rods reduce specific pressure & improve lubrication
- Solid Ceramic Plungers With Dual Guide System
- Ceramic runs cooler & lasts longer; can be rebuilt
- New plunger guide assembly reduces friction, extends seal life (patent pending)
- Durable Components
- Oversized forged crankshaft & crankshaft key increase performance
- Optimized outlet valves deliver better volumetric efficiency
- Large Diameter Sight Glass
- Easier oil checking; dipstick with breather for easier maintenance
- Large 15 oz. oil capacity means better cooling & lubrication
- NEMA184TC Electric Motor Mounting Flange
- Maximum 2500 PSI, 4 gallons per minute, up to 165°F; rated for motors up to 6.6 HP & 1750 RPM

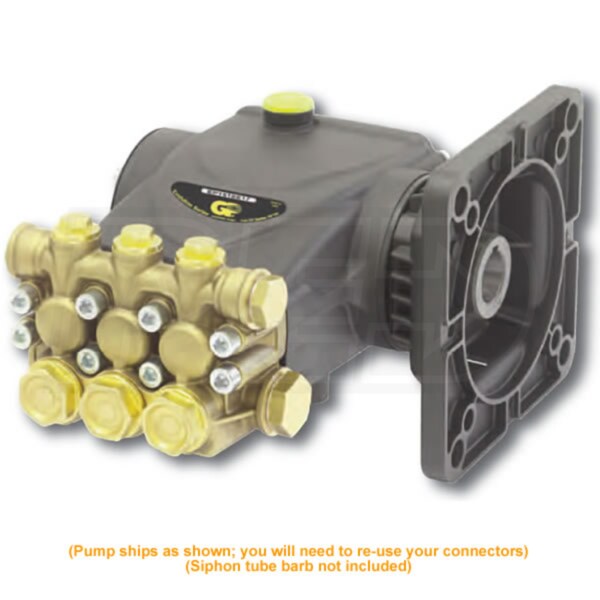

- Pump ships as shown; you will need to re-use your connectors or purchase them separately
- Shaft diameter 1.125 inches (28.58mm)
- Be Sure To Measure Shaft & Flange Bolt Holes Accurately!
- There is a 25% restock fee on returned pumps
- (Dimensions can be downloaded under the Specs tab in Manual PDF)
- Please Call Us For Sizing Assistance w/ Information Below:
- 1. Age of Pump and Model # (must be no more than 15-yrs old)
- 2. Is the pump Vertical or Horizontal
- 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
- 4. Engine Brand and HP (model # if available would be helpful)
- ***Shaft Size Measurements Must Be Precise***
Specifications
Accessories
Pump Brand
General Pump
Pump Type
Triplex Plunger
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Electric
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Maximum GPM
Maximum GPM
Gallon per Minute
4
Rated PSI
2500 PSI
Overview
Weight
15.4 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
9.7 Inches
Product Width
8.45 Inches
Product Height
6.3 Inches
UPC
682491066125
Additional Model Numbers
EEP1812E17, E1812E17
Grade
Style
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Grade
Professional
Style
Electric
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Features
Features
- Quality Replacement For Worn Out Pumps
- New forged brass manifold increases working pressure to 2500 PSI
- New Pump Design
- Connecting rods reduce specific pressure & improve lubrication
- Solid Ceramic Plungers With Dual Guide System
- Ceramic runs cooler & lasts longer; can be rebuilt
- New plunger guide assembly reduces friction, extends seal life (patent pending)
- Durable Components
- Oversized forged crankshaft & crankshaft key increase performance
- Optimized outlet valves deliver better volumetric efficiency
- Large Diameter Sight Glass
- Easier oil checking; dipstick with breather for easier maintenance
- Large 15 oz. oil capacity means better cooling & lubrication
- NEMA184TC Electric Motor Mounting Flange
- Maximum 2500 PSI, 4 gallons per minute, up to 165°F; rated for motors up to 6.6 HP & 1750 RPM
- Pump ships as shown; you will need to re-use your connectors or purchase them separately
- Shaft diameter 1.125 inches (28.58mm)
- Be Sure To Measure Shaft & Flange Bolt Holes Accurately!
- There is a 25% restock fee on returned pumps
- (Dimensions can be downloaded under the Specs tab in Manual PDF)
- Please Call Us For Sizing Assistance w/ Information Below:
- 1. Age of Pump and Model # (must be no more than 15-yrs old)
- 2. Is the pump Vertical or Horizontal
- 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
- 4. Engine Brand and HP (model # if available would be helpful)
- ***Shaft Size Measurements Must Be Precise***
Specifications
Accessories
Pump Brand
General Pump
Pump Type
Triplex Plunger
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Electric
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Maximum GPM
Maximum GPM
Gallon per Minute
4
Rated PSI
2500 PSI
Overview
Weight
15.4 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
9.7 Inches
Product Width
8.45 Inches
Product Height
6.3 Inches
UPC
682491066125
Additional Model Numbers
EEP1812E17, E1812E17
Product Specs
+−
Specifications
Accessories
Pump Brand
General Pump
Pump Type
Triplex Plunger
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Electric
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Maximum GPM
Maximum GPM
Gallon per Minute
4
Rated PSI
2500 PSI
Overview
Weight
15.4 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
9.7 Inches
Product Width
8.45 Inches
Product Height
6.3 Inches
UPC
682491066125
Additional Model Numbers
EEP1812E17, E1812E17
