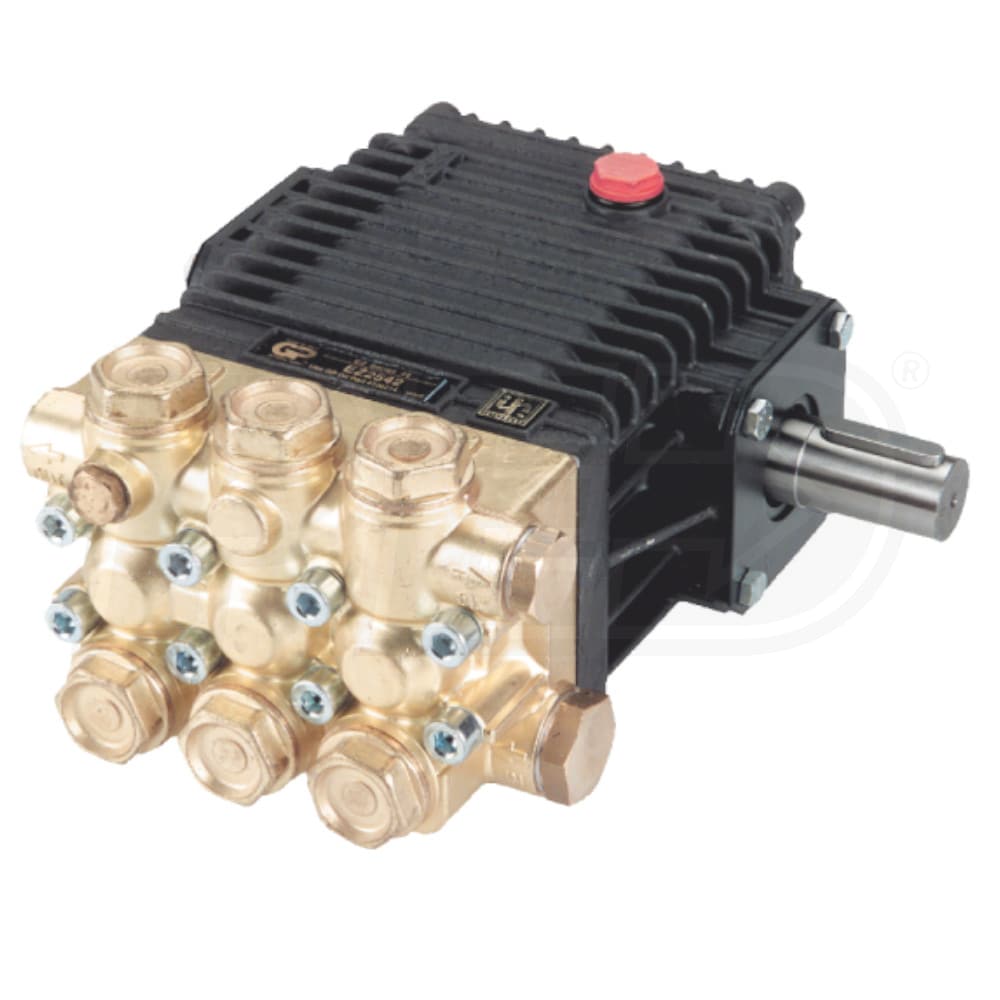

General Pump EZ Series 44 2500 PSI 3.6 GPM Solid Shaft Triplex Pressure Washer Pump (Belt Drive)

Model:

EZ2536S

Write A Review
Coming Soon
General Pump EZ Series 44 2500 PSI 3.6 GPM Solid Shaft Triplex Pressure Washer Pump (Belt Drive)
General Pump EZ Series 44 2500 PSI 3.6 GPM Solid Shaft Triplex Pressure Washer Pump (Belt Drive)
Model: EZ2536S
$402.99
Coming Soon
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Pressure Washers Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Gas

Inflow

1/2" Threaded (Female)

Outflow

3/8" Threaded (Female)

  • Fully Plumbed EZ2536S Replacement Pump
  • The preferred pump frame in the pressure cleaning industry
  • Triplex Plunger Pump
  • Heavy-duty tapered roller bearing
  • One-piece plunger design eliminates water entering crankcase
  • Offers Maximum 2500 PSI & 3.6 GPM
  • Heavy-duty advanced forged brass manifold
  • Solid ceramic plungers with dust protection chamber
  • Rated for a maximum 125 PSI and 165 degree temperature
  • Durable Components
  • Flex coupling and bell housing available for direct drive
  • Large-capacity, die-cast, anodized aluminum oil-bath crankcase
  • Forged brass manifold lasts longer than cheaper models
  • 24 MM Solid Shaft (.945 inches) Handles 1750 RPM
  • Inlet port thread 1/2-14 BSPP-F
  • Discharge port thread 3/8-19 BSPP-F
  • Plunger bore .708 in. / 18 mm, plunger stroke .433 in / 11 mm
  • Crankcase oil capacity 14 ounces
  • Shaft Size Measurements Must Be Precise
  • Dimensions are in the Spec sheet download under the Specs tab
  • There is a 25% restock fee on returned pumps
  • This is a bare pump; you will need to re-use your current fittings or purchase new ones (sold separately)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

EZ2536S
specs product image PID-115503
Overview
Weight
18 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
8.6 Inches
Product Width
5.5 Inches
Product Height
8.7 Inches
Power Type
Gas
Accessories
Pump Brand
General Pump
Pump Type
Belt Drive
Shaft Size
Belt Drive
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Minimum GPM Learn More
Minimum GPM
Gallon per Minute
3.6
Rated PSI
2500 PSI
Chemical Injections
Sold Separately
