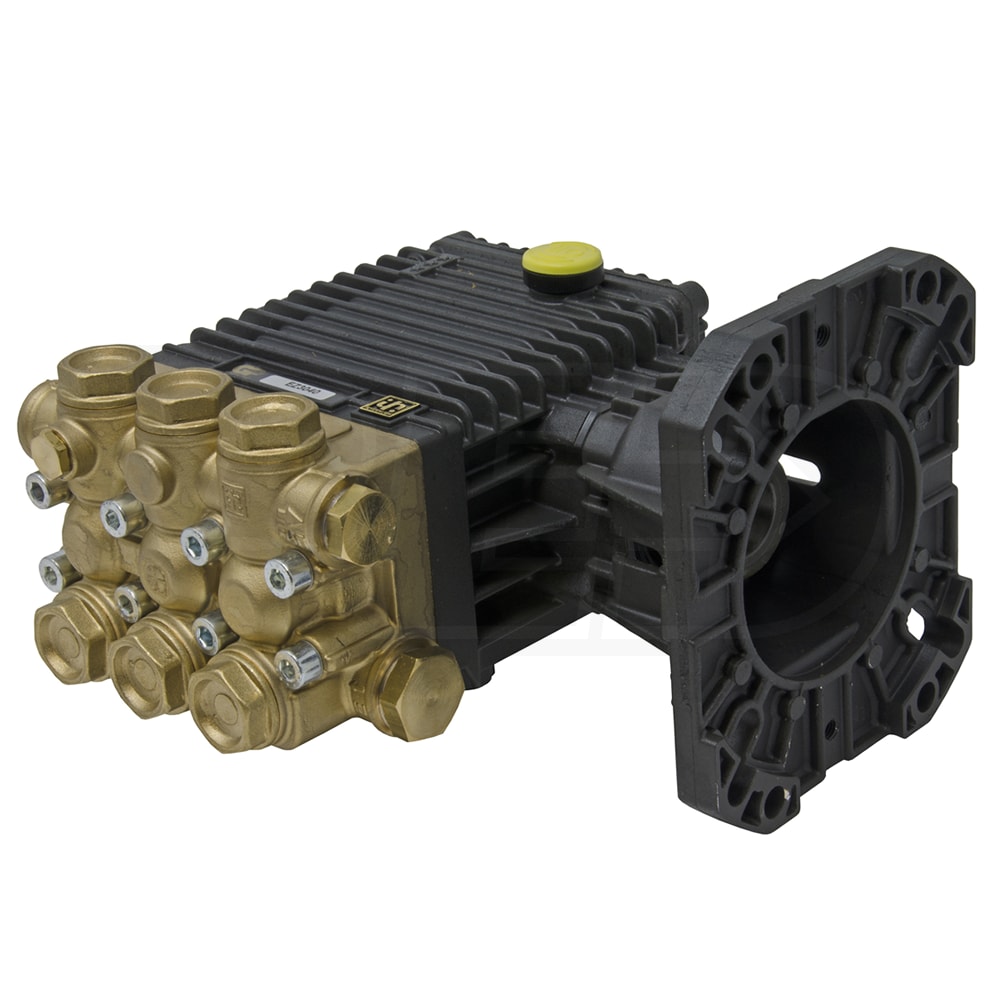

General Pump 44 Series 4000 PSI 4 GPM Triplex Pressure Washer Pump
Model: EZ4040G
+
Share This Product
-
Product Description
-
6Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

Grade
Professional
Style
Gas
Features
Features
- High Quality Replacement For Worn Out Pumps
- Professional quality at an affordable price
- Triplex Plunger Pump With Premium Roller Bearing
- One-piece plunger design eliminates water in the crankcase
- Runs cooler and lasts longer than axial pumps
- Durable Components
- Forged brass manifold lasts longer than cheaper models
- Die-cast, anodized aluminum oil-bath crankcase
- Unitized stainless steel inlet and discharge valves
- Standard SAE J609 Gasoline Mounting Flange
- Use with up to 3400 RPM engines
- Maximum 4000 PSI and 4 gallons per minute
- 1" hollow shaft, plunger bore & stroke .512 in. (13 mm)
- Crankcase oil capacity 14 ounces
- Be Sure To Measure Shaft & Flange Bolt Holes Accurately!
- There is a 25% restock fee on returned pumps

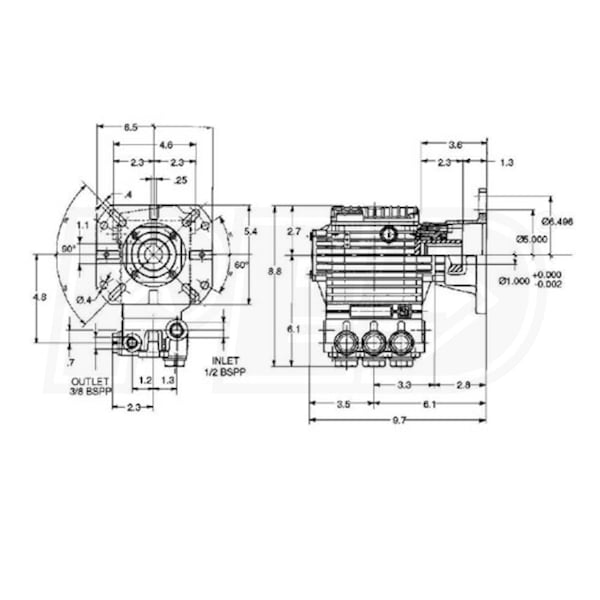

- (Dimensions on the spec sheet download under the Specs tab)
- Pump ships bare so you'll need to re-use your connectors or purchase them separately
- Please Call Us For Sizing Assistance w/ Information Below:
- 1. Age of Pump and Model # (must be no more than 15-yrs old)
- 2. Is the pump Vertical or Horizontal
- 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
- 4. Engine Brand and HP (model # if available would be helpful)
- ***Shaft Size Measurements Must Be Precise***
Specifications
Pump
Pump Brand
General
Pump Type
Triplex Plunger
Adjustable Pressure
No
Accessories
Pump Brand
General Pump
Pump Type
Triplex Plunger
Shaft Size
1
Pump Design
Horizontal
Adjustable Pressure
Yes
Accessory Grade
Professional
Accessory Style
Gas
Maximum GPM
Maximum GPM
Gallon per Minute
4
Rated PSI
4000 PSI
Chemical Injections
Sold Separately
Overview
Weight
20 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
8.8 Inches
Product Width
9.7 Inches
Product Height
6.5 Inches
UPC
682491016984
Grade

Style

Grade
Professional
Style
Gas
Features
Features
- High Quality Replacement For Worn Out Pumps
- Professional quality at an affordable price
- Triplex Plunger Pump With Premium Roller Bearing
- One-piece plunger design eliminates water in the crankcase
- Runs cooler and lasts longer than axial pumps
- Durable Components
- Forged brass manifold lasts longer than cheaper models
- Die-cast, anodized aluminum oil-bath crankcase
- Unitized stainless steel inlet and discharge valves
- Standard SAE J609 Gasoline Mounting Flange
- Use with up to 3400 RPM engines
- Maximum 4000 PSI and 4 gallons per minute
- 1" hollow shaft, plunger bore & stroke .512 in. (13 mm)
- Crankcase oil capacity 14 ounces
- Be Sure To Measure Shaft & Flange Bolt Holes Accurately!
- There is a 25% restock fee on returned pumps
- (Dimensions on the spec sheet download under the Specs tab)
- Pump ships bare so you'll need to re-use your connectors or purchase them separately
- Please Call Us For Sizing Assistance w/ Information Below:
- 1. Age of Pump and Model # (must be no more than 15-yrs old)
- 2. Is the pump Vertical or Horizontal
- 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
- 4. Engine Brand and HP (model # if available would be helpful)
- ***Shaft Size Measurements Must Be Precise***
Specifications
Pump
Pump Brand
General
Pump Type
Triplex Plunger
Adjustable Pressure
No
Accessories
Pump Brand
General Pump
Pump Type
Triplex Plunger
Shaft Size
1
Pump Design
Horizontal
Adjustable Pressure
Yes
Accessory Grade
Professional
Accessory Style
Gas
Maximum GPM
Maximum GPM
Gallon per Minute
4
Rated PSI
4000 PSI
Chemical Injections
Sold Separately
Overview
Weight
20 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
8.8 Inches
Product Width
9.7 Inches
Product Height
6.5 Inches
UPC
682491016984
Product Specs
+−
Specifications
Pump
Pump Brand
General
Pump Type
Triplex Plunger
Adjustable Pressure
No
Accessories
Pump Brand
General Pump
Pump Type
Triplex Plunger
Shaft Size
1
Pump Design
Horizontal
Adjustable Pressure
Yes
Accessory Grade
Professional
Accessory Style
Gas
Maximum GPM
Maximum GPM
Gallon per Minute
4
Rated PSI
4000 PSI
Chemical Injections
Sold Separately
Overview
Weight
20 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
8.8 Inches
Product Width
9.7 Inches
Product Height
6.5 Inches
UPC
682491016984
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Jim. the Pressure Washer Expert
+−
Is this pump designed to handle hot water?
Steve
from Indiana
March 24, 2013
Answer
This pump can handle water up to 165 F degrees.
