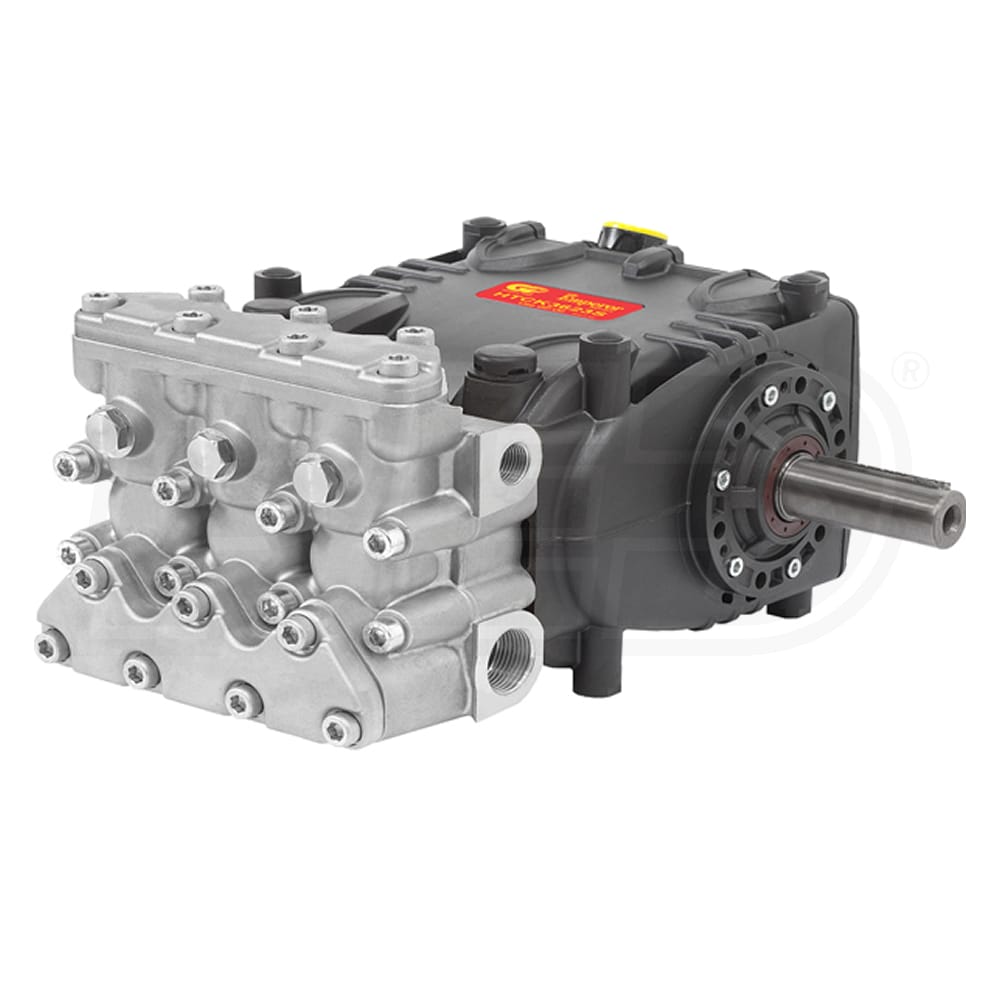

General Pump Emperor Series 1500 PSI 21.0 GPM Solid Shaft Triplex Pressure Washer Pump (Belt Drive)

Model:

HTCK3623S

Write a Review
$3,380.00
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
General Pump Emperor Series 1500 PSI 21.0 GPM Solid Shaft Triplex Pressure Washer Pump (Belt Drive)
General Pump Emperor Series 1500 PSI 21.0 GPM Solid Shaft Triplex Pressure Washer Pump (Belt Drive)
Model: HTCK3623S
$3,380.00
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Grade

Professional

Style

Gas

  • High Quality Replacement For Worn Out Pumps
  • The preferred pump frame in the pressure cleaning industry
  • Designed for use in applications where the water must be pre-heated, such as in carwash, food and pharmaceutical industries
  • Triplex Plunger Pump w/ High Tech Packings
  • Solid ceramic plungers run cooler
  • Superior low-pressure & high pressure seal
  • Specifically designed to handle rigorous duty cycles, high temperatures and chemicals
  • Durable Components & Heavy Duty Tapered Roller Bearings
  • Nickel-plated forged brass manifold lasts longer than cheaper models
  • Patent-pending inlet/outlet valve cage
  • 24 MM Solid Shaft (.945 inches) Handles 1150 RPM
  • Inlet port thread 1 NPT-F
  • Discharge port thread 1/2 NPT-F
  • Plunger bore 1.4 in / 36 mm, plunger stroke .9 in. / 23 mm
  • Crankcase oil capacity 64.2 ounces
  • Maximum fluid temperature 185 F; Max 125 PSI
  • Be Sure To Measure Shaft & Flange Bolt Holes Accurately!
  • There is a 25% restock fee on returned pumps
  • This is a bare pump; you will need to re-use your current fittings or purchase new ones (sold separately)
California residents see
Warning: This product can expose you to chemicals including Ethylbenzene which is known to the State of California to cause Cancer, and Toluene which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

HTCK3623S
specs product image PID-106524
Accessories
Pump Brand
General Pump
Pump Type
Belt Drive
Shaft Size
Belt Drive
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Maximum GPM Learn More
21.0
Rated PSI
1500 PSI
Chemical Injections
Sold Separately
Overview
Weight
79.6 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
15.3 Inches
Product Width
13.4 Inches
Product Height
7.7 Inches
Power Type
Gas
UPC
682491120223
