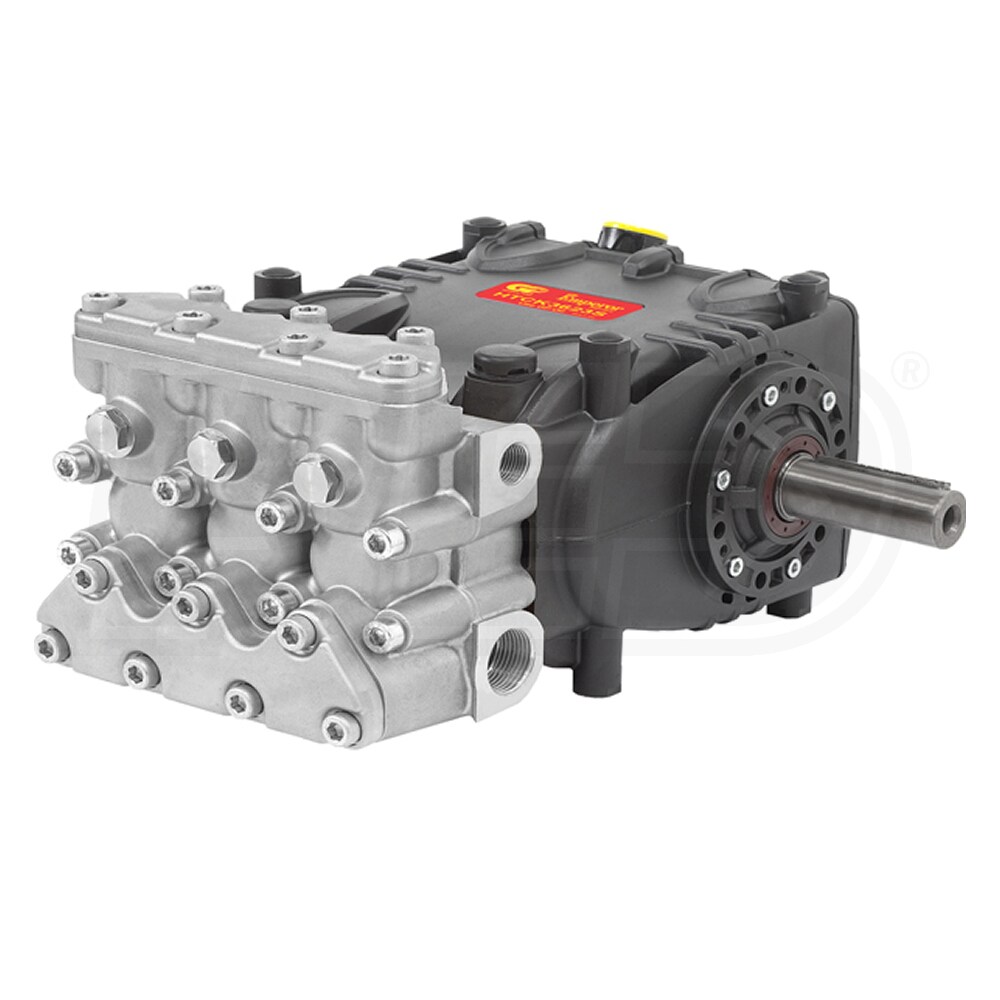

Nickel-plated forged brass manifold lasts longer than cheaper models
Patent-pending inlet/outlet valve cage
40 MM Solid Shaft (1.9 inches) Handles 900 RPM
Inlet port thread 1-1/2"-11 NPT-F
Discharge port thread 1"-11 NPT-F
Plunger bore 1.6 in / 40 mm, plunger stroke 1.9 in. / 50 mm
Crankcase oil capacity 124.4 ounces
Maximum fluid temperature 185 F; Max 125 PSI
Shaft Size Measurements Must Be Precise
Dimensions are in the Spec sheet download under the Specs tab
There is a 25% restock fee on returned pumps
This is a bare pump; you will need to re-use your current fittings or purchase new ones (sold separately)
