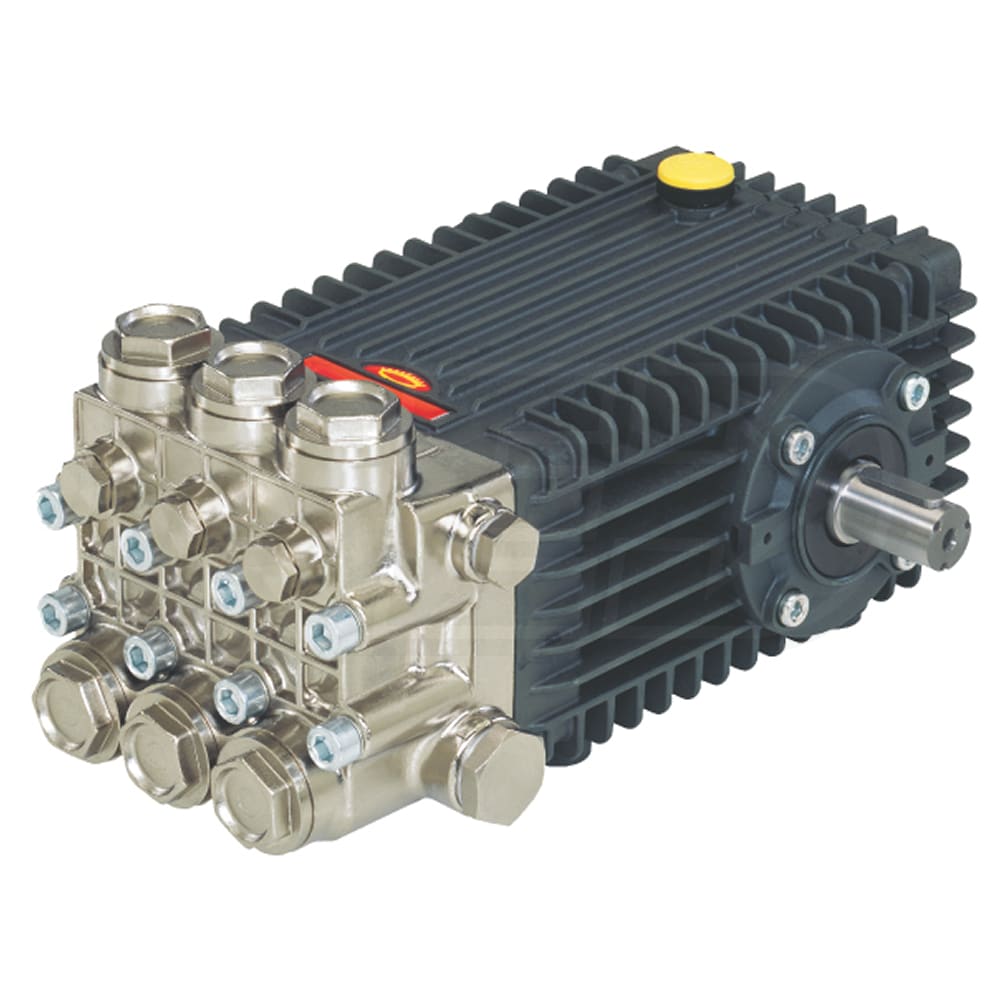

General Pump Emperor Series 3000 PSI 10.2 GPM Solid Shaft Triplex Pressure Washer Pump (Belt Drive)
Model:
HTF2221S
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Professional
Style
Gas
- High Quality Replacement For Worn Out Pumps
- The preferred pump frame in the pressure cleaning industry
- Ideal for use in carpet cleaning and other high pressure cleaning applications
- Triplex Plunger Pump w/ High Tech Packings
- Solid ceramic plungers run cooler
- Superior low-pressure & high pressure seal
- Durable Components
- Nickel-plated forged brass manifold lasts longer than cheaper models
- Nickel-plated inlet/outlet valve plugs
- 24 MM Solid Shaft (.945 inches) Handles 1750 RPM
- Inlet port thread 3/4" -14 BSP-F
- Discharge port thread 3/8" -19 BSP-F
- Plunger bore .866 in / 22 mm, plunger stroke .826 in. / 21 mm
- Crankcase oil capacity 40.6 ounces
- Rated PSI 125 and max temperature 185° F
- Shaft Size Measurements Must Be Precise
- Dimensions are in the Spec sheet download under the Specs tab
- There is a 25% restock fee on returned pumps
- This is a bare pump; you will need to re-use your current fittings or purchase new ones (sold separately)
California residents see
Warning: This product can expose you to chemicals including Ethylbenzene which is known to the State of California to cause Cancer, and Toluene which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
HTF2221S
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
41 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
13.4 Inches
Product Width
9.8 Inches
Product Height
6.4 Inches
Power Type
Gas
UPC
682491026136
Accessories
Pump Brand
General Pump
Pump Type
Belt Drive
Shaft Size
Belt Drive
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Maximum GPM
Maximum GPM
Gallon per Minute
10.2
Rated PSI
3000 PSI
Chemical Injections
Sold Separately
