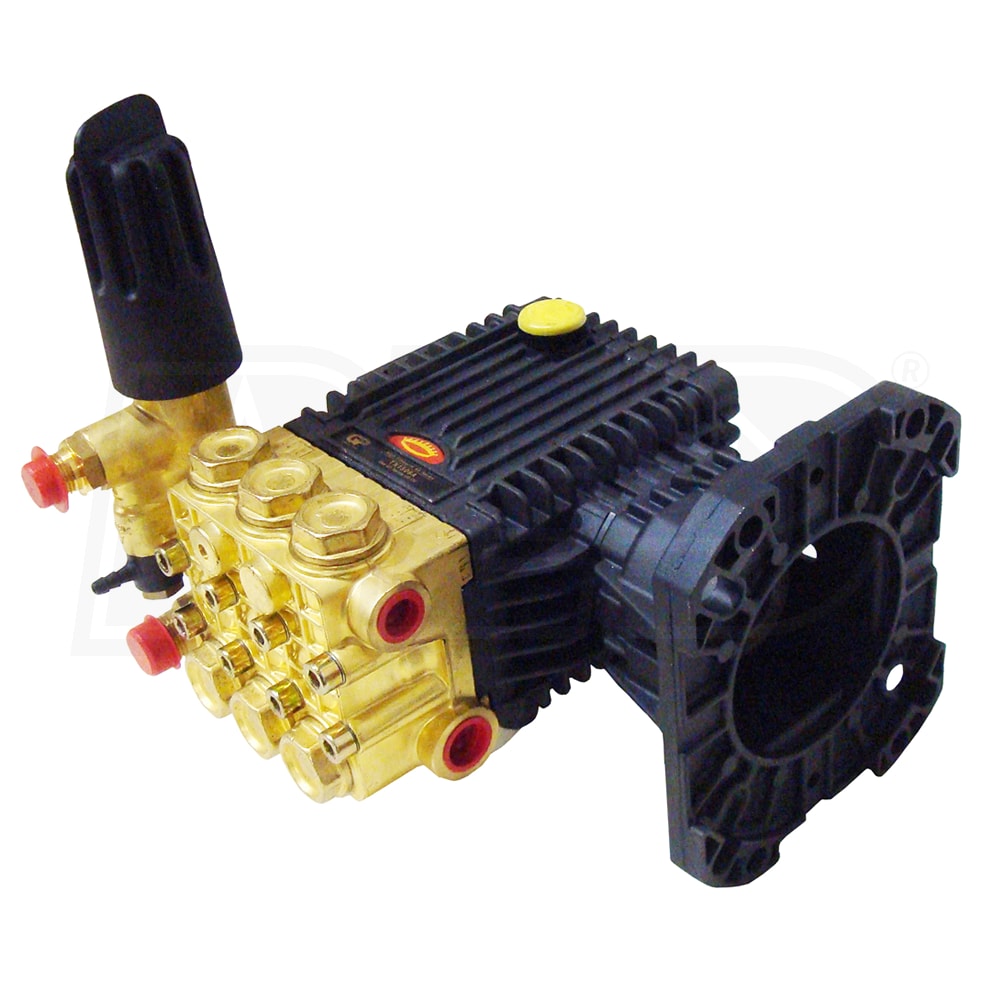

General Pump TX1510G8UIA
General Pump TX1510G8UIA
General Pump TX1510G8UIA
Hover to zoom
1 Of 5
General Pump TX1510G8UIA
General Pump TX1510G8UIA
General Pump Series 63 3500 PSI 4 GPM Triplex Pressure Washer Pump w/ Unloader & Injector
Model: TX1510G8UIA
4.1 out of 54.1 out of 54.1 out of 54.1 out of 54.1 out of 5
Number of Reviews(19)
Write a Review
Q&A (4)
$346.49
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 19
    Reviews
  • 4
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Grade
Style
Inflow
1/2
1/2" Threaded (Female)
Outflow
3/8
3/8" Threaded (Male)
Grade
Consumer
Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Male)
Features
Features
  • High Quality Replacement For Worn Out Pumps
  • Consumer grade is ideal for all general cleaning applications
  • Direct drive for convenience and durability
  • Triplex Plunger Pump With Solid White Ceramic Plungers
  • Runs cooler and lasts longer than axial pumps
  • Next generation packings for exceptional seal life
  • Built In Pressure Trapping Unloader And Injector
  • Adjustable pressure is handy and versatile
  • Injector allows use of any pressure washer safe detergent
  • Oversized Connecting Rods
  • Can handle up to 3400 RPM
  • 1" Hollow Shaft And J609-b Motor Flange
  • Inlet port thread 1/2"*14 BSP*F
  • Discharge port thread 3/8"-19 BSP-F
  • Maximum fluid temperature 160 degrees F
  • Bore .591 in. / 15mm, stroke .394 in. / 10mm
  • 14 ounce oil capacity
  • Be Sure To Measure Shaft & Flange Bolt Holes Accurately!
  • There is a 25% restock fee on returned pumps

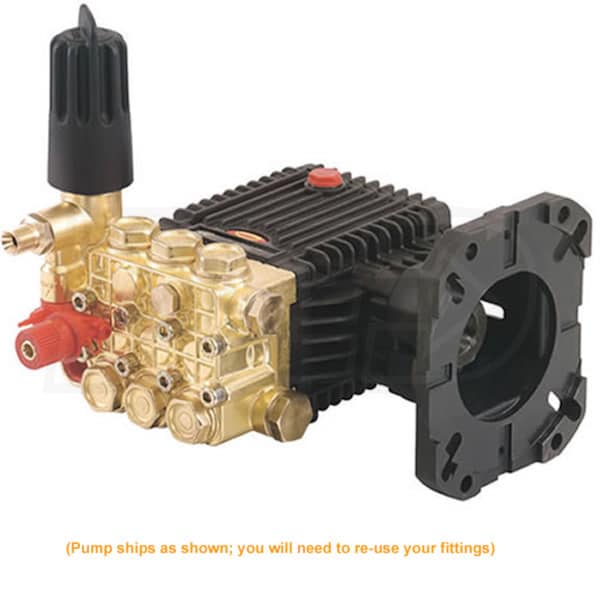

  • Ships as shown; you will need to re-use your connectors & siphon tube or purchase them separately
Specifications
Pump
Pump Brand
General
Pump Type
Triplex Plunger
Adjustable Pressure
Yes
Chemical Injection
Siphon Tube
Accessories
Pump Brand
General Pump
Pump Type
Triplex Plunger
Shaft Size
1
Pump Design
Horizontal
Adjustable Pressure
Yes
Accessory Grade
Consumer
Accessory Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Male)
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
4
Rated PSI
3500 PSI
Overview
Weight
18.2 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
11.3 Inches
Product Width
9.5 Inches
Product Height
9.1 Inches
UPC
682491013358
Grade
Style
Inflow
1/2
1/2" Threaded (Female)
Outflow
3/8
3/8" Threaded (Male)
Grade
Consumer
Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Male)
Features
Features
  • High Quality Replacement For Worn Out Pumps
  • Consumer grade is ideal for all general cleaning applications
  • Direct drive for convenience and durability
  • Triplex Plunger Pump With Solid White Ceramic Plungers
  • Runs cooler and lasts longer than axial pumps
  • Next generation packings for exceptional seal life
  • Built In Pressure Trapping Unloader And Injector
  • Adjustable pressure is handy and versatile
  • Injector allows use of any pressure washer safe detergent
  • Oversized Connecting Rods
  • Can handle up to 3400 RPM
  • 1" Hollow Shaft And J609-b Motor Flange
  • Inlet port thread 1/2"*14 BSP*F
  • Discharge port thread 3/8"-19 BSP-F
  • Maximum fluid temperature 160 degrees F
  • Bore .591 in. / 15mm, stroke .394 in. / 10mm
  • 14 ounce oil capacity
  • Be Sure To Measure Shaft & Flange Bolt Holes Accurately!
  • There is a 25% restock fee on returned pumps
  • Ships as shown; you will need to re-use your connectors & siphon tube or purchase them separately
Specifications
Pump
Pump Brand
General
Pump Type
Triplex Plunger
Adjustable Pressure
Yes
Chemical Injection
Siphon Tube
Accessories
Pump Brand
General Pump
Pump Type
Triplex Plunger
Shaft Size
1
Pump Design
Horizontal
Adjustable Pressure
Yes
Accessory Grade
Consumer
Accessory Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Male)
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
4
Rated PSI
3500 PSI
Overview
Weight
18.2 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
11.3 Inches
Product Width
9.5 Inches
Product Height
9.1 Inches
UPC
682491013358
Product Specs
+−
Specifications
Pump
Pump Brand
General
Pump Type
Triplex Plunger
Adjustable Pressure
Yes
Chemical Injection
Siphon Tube
Accessories
Pump Brand
General Pump
Pump Type
Triplex Plunger
Shaft Size
1
Pump Design
Horizontal
Adjustable Pressure
Yes
Accessory Grade
Consumer
Accessory Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Male)
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
4
Rated PSI
3500 PSI
Overview
Weight
18.2 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
11.3 Inches
Product Width
9.5 Inches
Product Height
9.1 Inches
UPC
682491013358
Reviews
4.1 out of 54.1 out of 54.1 out of 54.1 out of 54.1 out of 5
(19)
+−
General Pump TX1510G8UIA Reviews & Ratings
83% of Reviewers Recommend This Product
Product Q&A
(4)
+−
Search Product Q&A's Answered by Jim. the Pressure Washer Expert
icon-social-fb1
+−
will this work on my Honda gx390 ? the pump looks the same
Ricardo Ayala
from Michigan
July 06, 2016
Answer
This will bolt on the 1" engine shaft, however, these are not plumbed so installation can be more difficult. We sell fully plumbed pumps that will include all of your needed fittings.

With a Honda GX390 engine you have quite a few choices. I do recommend purchasing a fully plumbed pump which will come ready to bolt on and go.
General Pump
CAT Pump 67 Series
CAT Pump 66 Series
AR Pump

Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+−
Do this pump will fit to a honda gx 200 motor
Mario
from Arizona
June 01, 2014
Answer
No this would not be compatible with your engine. Your Engine has a 3/4" Diameter Engine shaft and this pump is built for a 1" Engine diameter shaft. I would recommend going with the CAT 3000 PSI pump model SLP4PPX30GSI-057. That model is a 3000 PSI CAT pump that comes fully plumed with everything you need. In my opinion CAT makes one of the best pumps in the industry today. I would not hesitate to recommend this pump. I have attached a link for you to view and purchase this pump.


CAT 3000 PSI pump
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+−
Hi, I just wanted to make sure this pump would work on my honda gx270 with a 1" shaft?
Kurt
from
July 10, 2012
Answer
Yes, this pump will definitely fit a Honda GX270 engine with a 1" horizontal shaft.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+−
Making sure this is a bolt-on replacement for my Honda GX340 w/1" shaft.
Ray
from
May 18, 2012
Answer
Yes, this pump will definitely fit onto a Honda GX340 engine with a 1" shaft. The bolt pattern will be the same.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
