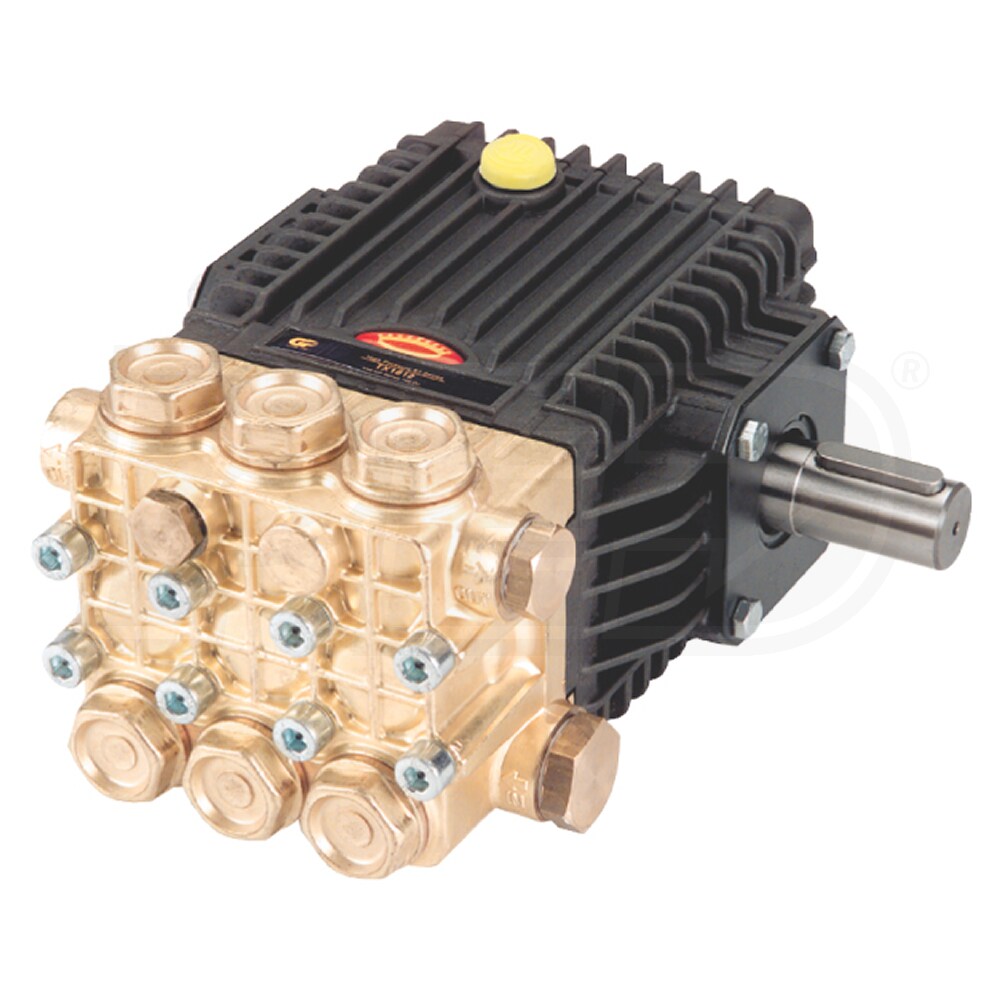

General Pump Series 63 3000 PSI 4 GPM Solid Shaft Triplex Pressure Washer Pump (Belt Drive)
Model:
EP1510S34
Number of Reviews
(0)
Write A Review
Ask a Question
$469.99
Free Shipping
×
Free Shipping
*This product qualifies for
Free Shipping
anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
More On The Way
Estimated Availability July 07, 2023
Shipping to
60601
Update Shipping Details
Shipping Details
ZIP Code
Update
Free to Lower 48 States
Standard Rates to
Alaska
,
Hawaii
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Notify Me When In-Stock
Email Address
Remind Me
+
General Pump Series 63 3000 PSI 4 GPM Solid Shaft Triplex Pressure Washer Pump (Belt Drive)
Model: EP1510S34
Number of Reviews
(0)
Ask a Question
$469.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share
+
Share This Product
Recommended Accessories
+
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Add All Required Accessories
Optional Accessories
10
Features
×
Grade
Consumer
Style
Gas
High Quality Replacement For Worn Out Pumps
Commercial grade is ideal for all general cleaning applications
Flex coupling and bell housing available for direct drive
Triplex Plunger Pump With Solid White Ceramic Plungers
Runs cooler and lasts longer than axial pumps
Next generation packings for exceptional seal life
63 Series General Pump
Strongest, heaviest manifold on market (in this pump level)
Fully anodized crankcase offers better protection against elements
Oversized Connecting Rods
Can handle up to 3400 RPM
.945 in / 24 mm Hollow Shaft
Inlet port thread 1/2 - 14 BSPP-F
Discharge port thread 3/8 - 19 BSPP-F
Maximum fluid temperature 165 degrees F
Bore .591 in. / 15 mm, stroke .315 in. / 8mm
14 ounce oil capacity
Shaft Size Measurements Must Be Precise
Dimensions are in the Spec sheet download under the Specs tab
There is a 25% restock fee on returned pumps
This is a bare pump; you will need to re-use your current fittings or purchase new ones (sold separately)
California residents see
Prop 65 WARNINGS
Show All Features
×
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to:
www.p65Warnings.ca.gov
Specifications
+
EP1510S34
Pump
Pump Brand
General
Pump Type
Triplex Plunger
Adjustable Pressure
Yes
Chemical Injection
Siphon Tube
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
19 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
8.4 Inches
Product Width
8.3 Inches
Product Height
4.8 Inches
Additional Model Numbers
TX1510S34, EP1510S34
Accessories
Pump Brand
General Pump
Pump Type
Triplex Plunger
Shaft Size
Belt Drive
Pump Design
Horizontal
Accessory Grade
Consumer
Accessory Style
Gas
Maximum GPM
×
Maximum GPM
Gallon per Minute
4
Rated PSI
3000 PSI
