Features
Grade
Consumer
Style
Gas
Inflow
3/4" Threaded (Female)
Outflow
22m Threaded (Male)

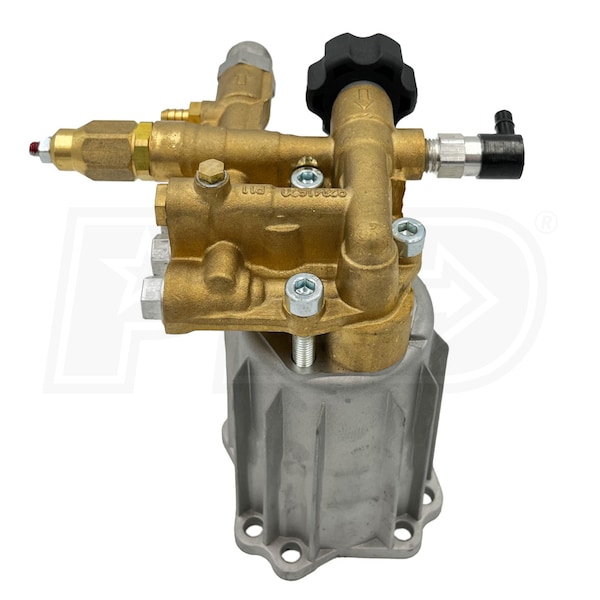

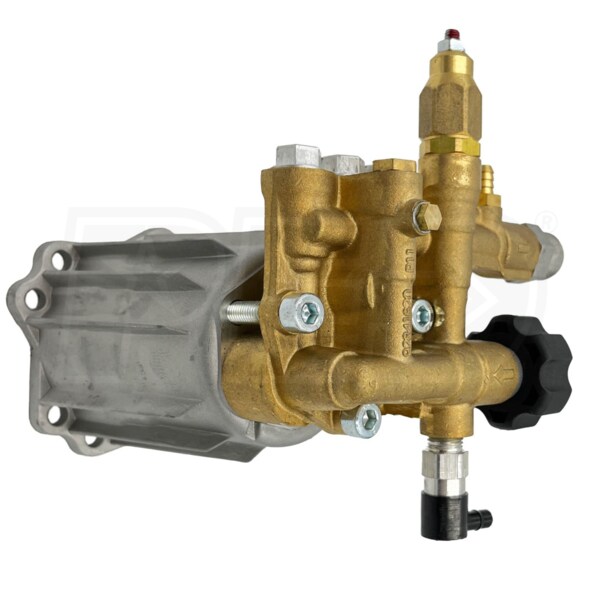

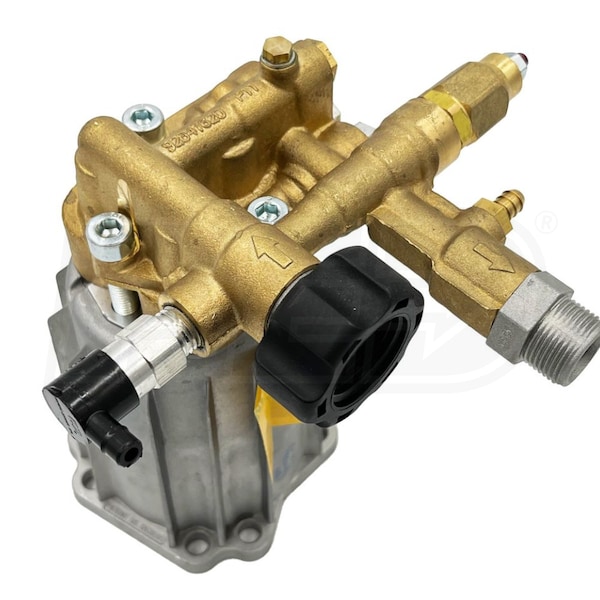

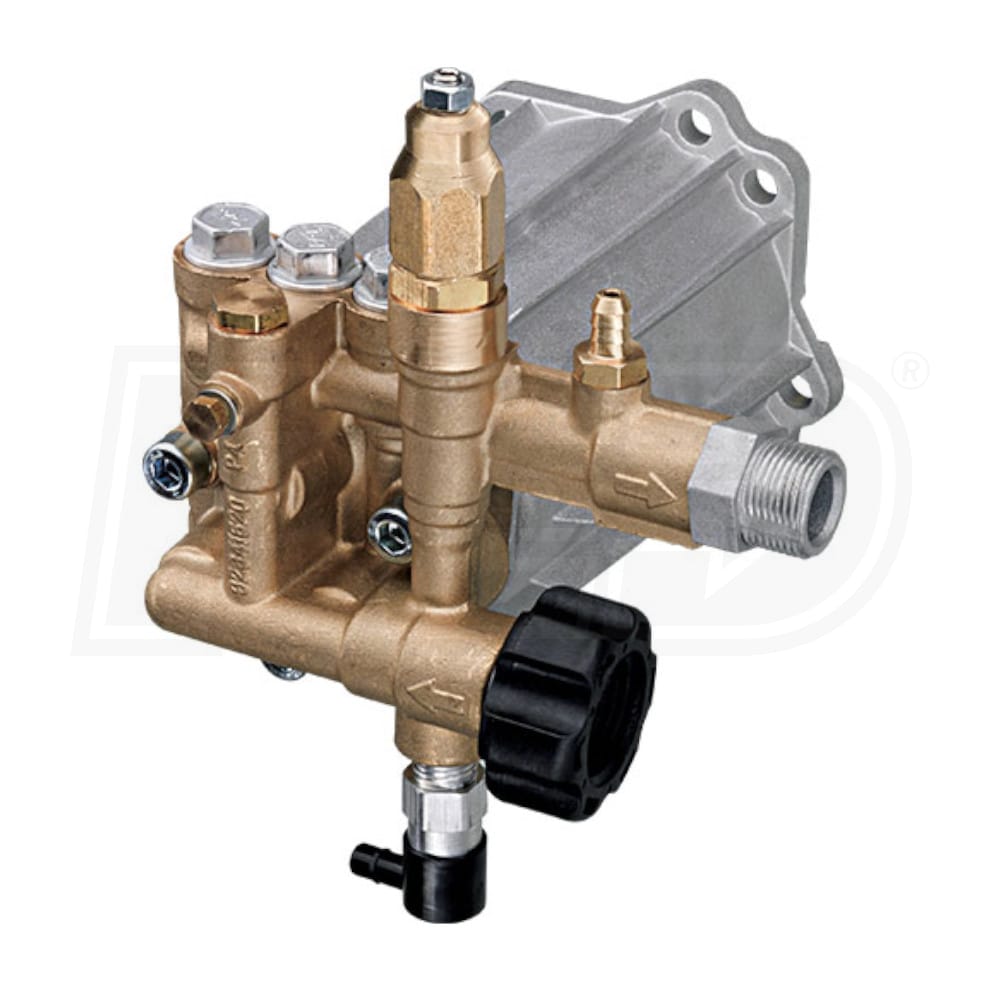

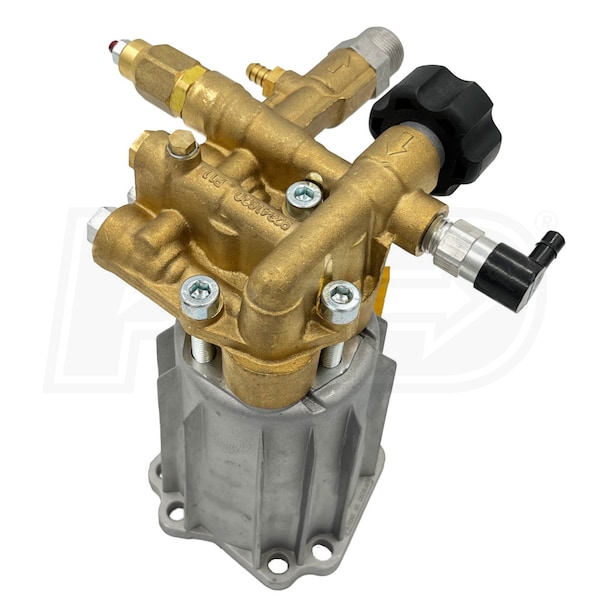

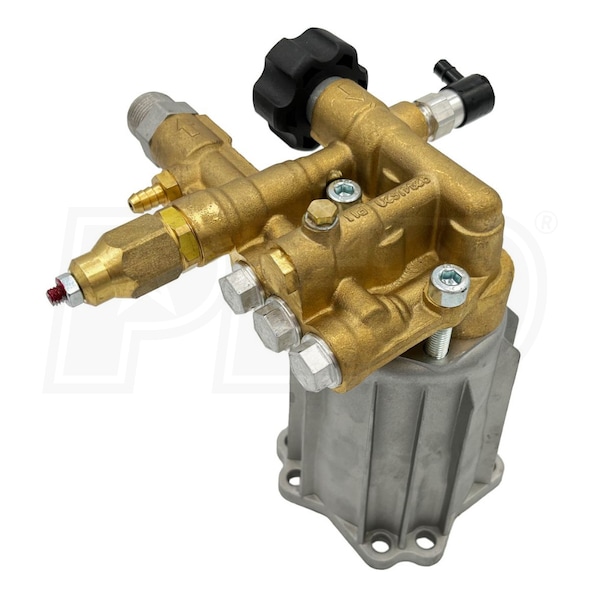

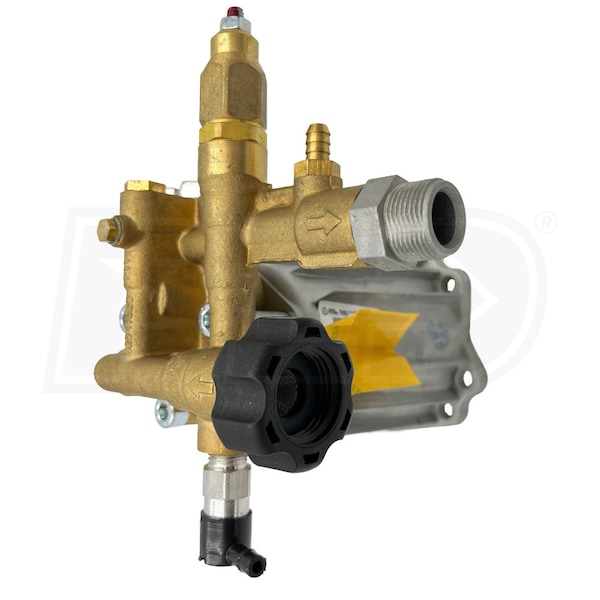

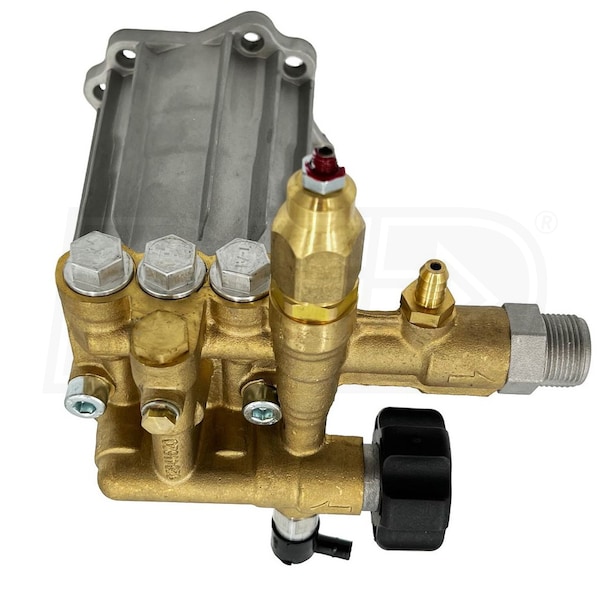

High-Quality Replacement For Worn Out Pumps
Fits many homeowner-type pressure washers

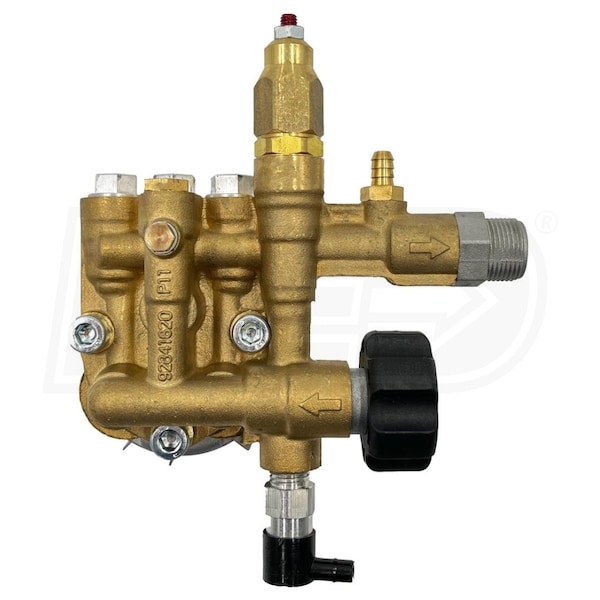

Pressed brass pump head, die-cast aluminum alloy pump body
Axial Cam Pump
High pressure outlet fittings and built-in pressure control valve
Direct drive and easy start valve (EZ) for convenience and durability

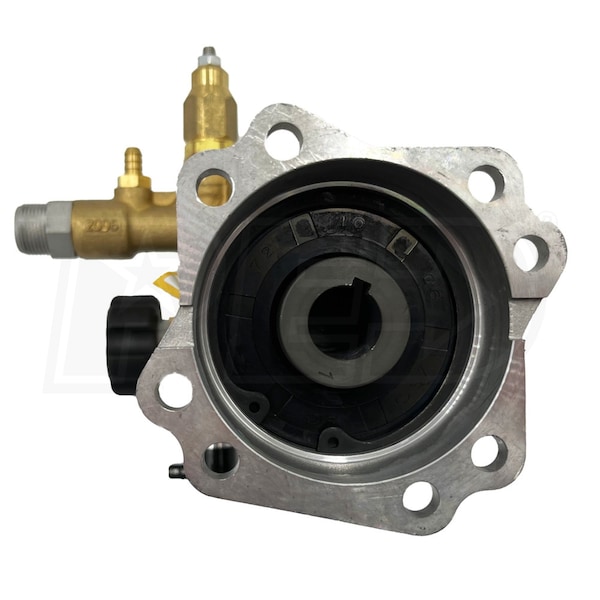

Standard Matching Gasoline Mounting Flange
Convenient connection to a 3/4" gas engine flange
3/4" hollow shaft spins at 3400 rpm
Bore diameter 12mm; Stroke 9.7 mm; 4.3 HP pump
Powerful And Versatile
Will push 2.5 gpm at 3000 psi; ideal for 4 to 7 HP engines

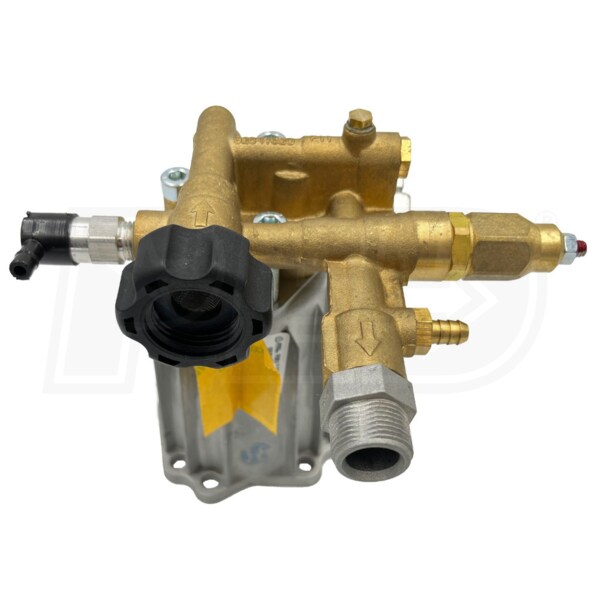

Water inlet: 3/4" Female garden hose; outlet: 22 MM Male thread
Please Measure Shaft And Flange Bolt Holes Carefully!
There is a 25% restock fee on returned pumps
This is a bare pump; you will need to reuse the connectors & siphon tube from your old pump
Please Call Us For Sizing Assistance w/ Information Below:
1. Age of Pump and Model # (must be no more than 15-yrs old)
2. Is the pump Vertical or Horizontal
3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
4. Engine Brand and HP (model # if available would be helpful)
***Shaft Size Measurements Must Be Precise***
