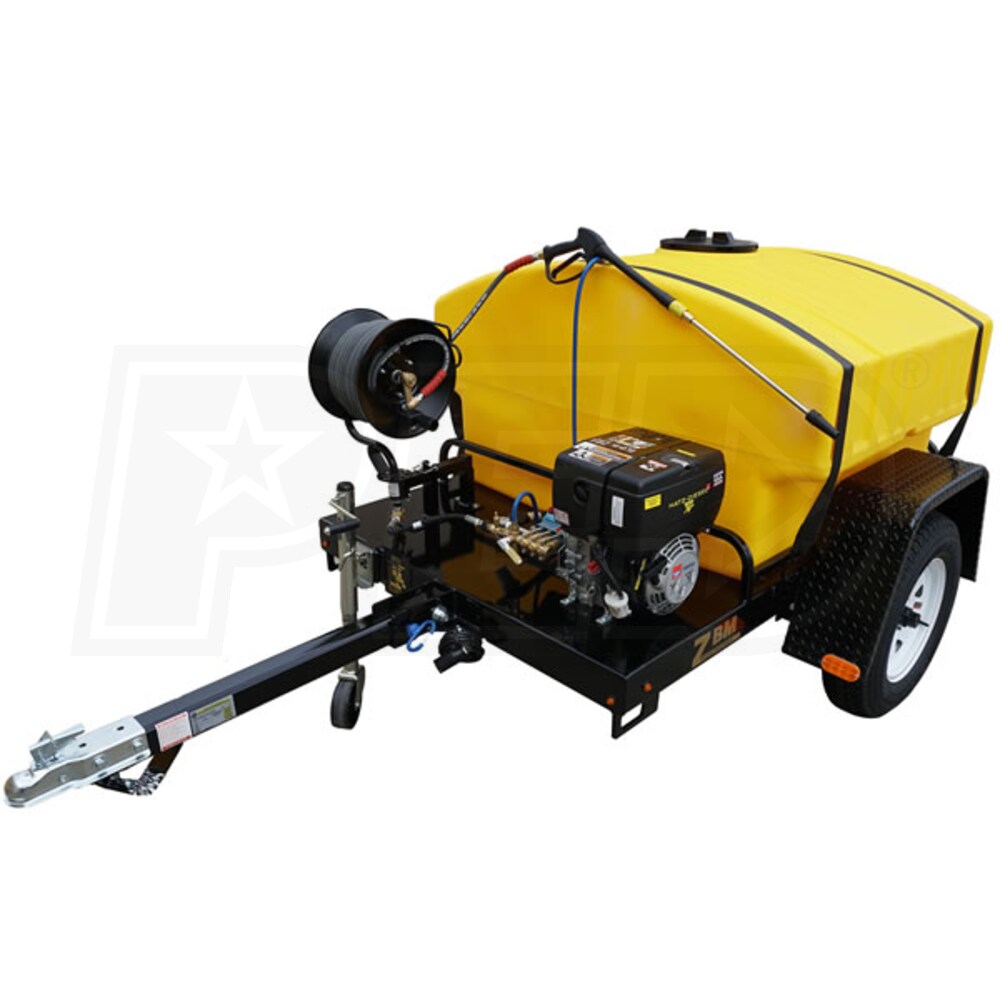

Cam Spray 4000DT Professional 4000 PSI Diesel-Cold Water Trailer Pressure Washer

Grade

Style

Water Pressure

4000

PSI

Water Flow

GPM

Cleaning Speed

16000

Cleaning Units

Engine

Other

Pressure Washer & Water Tank On Powder Coated Frame Trailer
•14" wheels on a 3500 lbs axle; includes road ready lighting

300 Gallon Roto-Molded, Top Fill Water Tank
•Filled weight: 3390 pounds (900 lbs unit + 2490 lbs water)
•Automatic shut off if machine runs dry

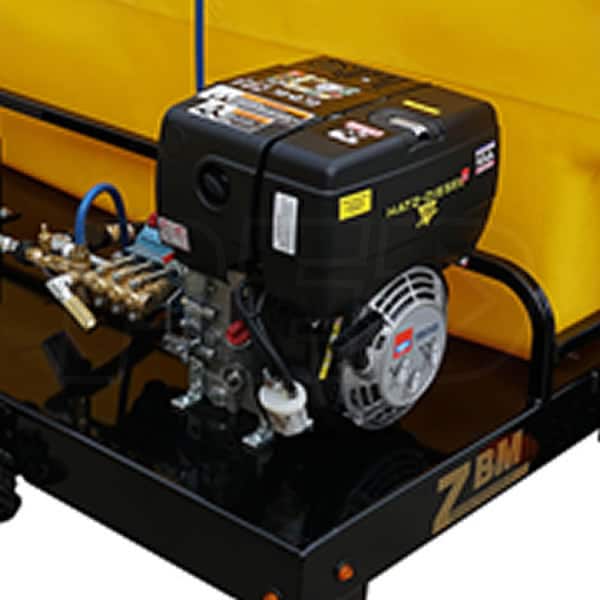

Commercial Grade 14 HP Hatz Diesel Engine W/ 12V Electric Start
•Cost effective fuel economy; 2 year commercial use warranty
•(Group 24 battery not included)

Triplex Plunger Pump With Stainless Steel Valves
•Ceramic plungers run cooler and last longer; easy to maintain
•Maximum Pump Inlet Water Temperature : 140° F
•Adjustable pressure and thermal relief valve

Professional Grade Wand And Trigger Gun
•Quick change tips in 0°,15°,25° and 40° plus detergent tip

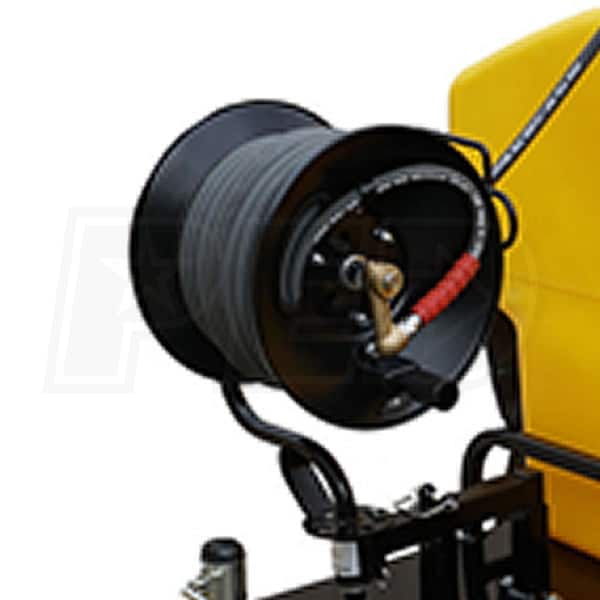

•Includes 100' of 3/8" high pressure hose on swivel hose reel

Must Ship To A Dock With A Forklift
•Too large for residential delivery

Engine

Engine Brand

Other

Starter

12-Volt

14 HP

Fuel Tank Size

10.5 quarts

Consumer Engine Warranty

2 Years

Commercial Engine Warranty

2 Years

Pump

Pump Brand

Udor

Pump Type

Triplex Plunger

Adjustable Pressure

Yes

Chemical Injection

Siphon Tube

Water Temperature

Hot

Pump Consumer Warranty

5 Years

Pump Commercial Warranty

5 Years

Water Pressure

4000 PSI

Water Flow

4 GPM

Housing

Frame Type

Trailer

Wheels

Pneumatic with Tube

Wheel Jack

Yes

Axles

Single

Fenders

Yes

Hose

Hose Storage

100-Ft Reel

Hose Length

100 Feet

Hose Material

Rubber

Hose Diameter

3/8 Inch

Inlet Hose Reel

Not Included

Inlet Hose

Not Included

Spray Gun

Spray Gun Connection

Threaded

Spray Gun Grade

Professional

Spray Gun Wand

Single Wand

Spray Tips

Quick Connect Tips (5)

Turbo Nozzle

Sold Separately

Water Tank

Water Tank Size

300 Gallons

Overview

Made in USA

Weight

900 Pounds

Product Length

112 Inches

Product Width

70 Inches

Product Height

54 Inches

Consumer Warranty

1 Year

Commercial Warranty

1 Year

UPC

095879301600

Model

4000DT

Download Documents

Product Manual

Pay by Check & Save $319.80

Subject: Case Record Type Type Case Reason Store ID: Product ID: Data Category: Brand Category:

*Ask Brian about the Cam Spray 4000DT. Sorry, no repair questions:

*Name:

*State:

*Email:

Receive Weekly How-To Tips & Specials

*Required Field Submit

1 Question

Q: What is the exact model number for the 14 hp HATZ diesel engine that comes with the 4000DT cold water cam unit. I just want to verify and research the motor possible purchase.

Thank you Bill,

Jason
by Jason from California on January 30, 2013

A: This model trailer pressure washer uses a HATZ 1D81Z model engine.
by Brian, Product Expert
