Inflow
3/8" Threaded (Female) |
Outflow
3/8" Threaded (Male) |

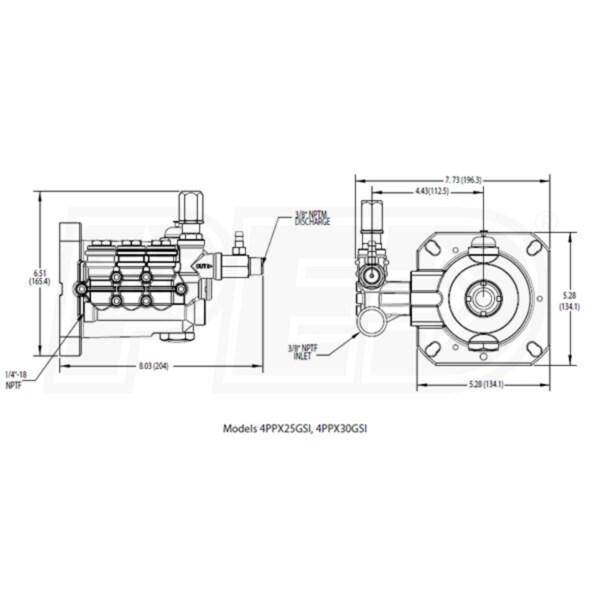

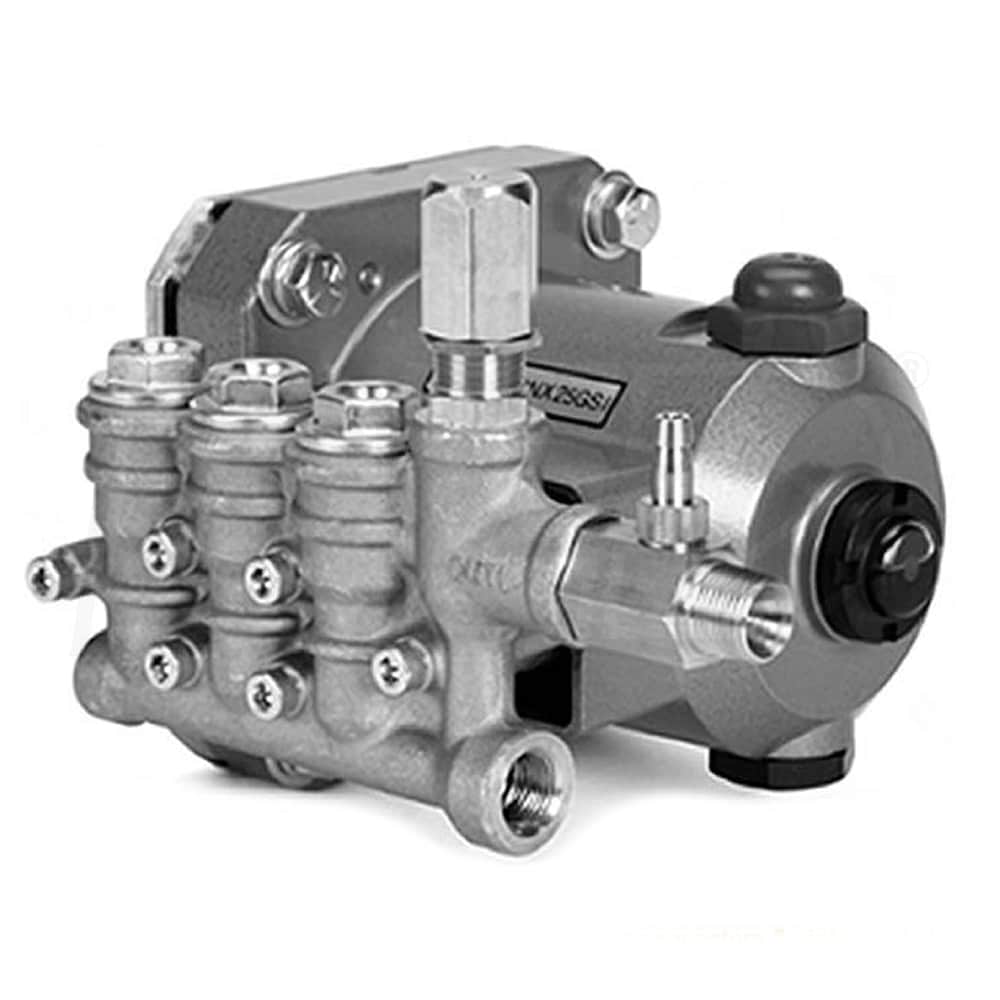

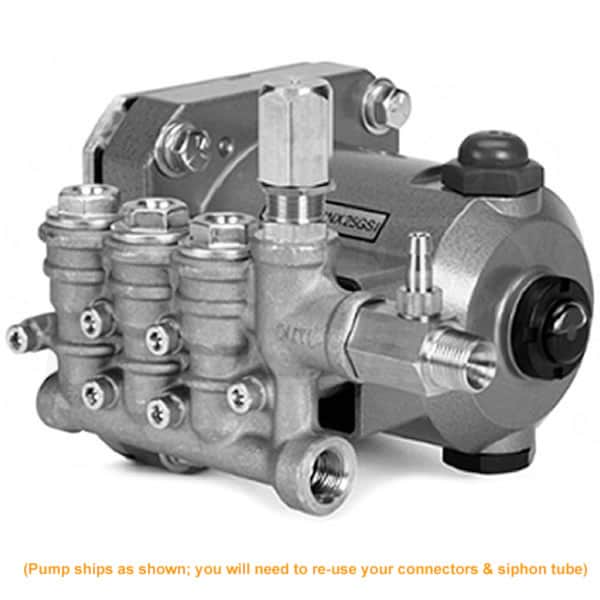

| CAT Brand Triplex Plunger Replacement Pump •Durable & long lasting; advanced design for smooth liquid flow •3/8" NPT female inlet, 3/8" NPT male outlet; 140°F maximum water temperature Concentric Solid Ceramic Plungers •Ceramic runs cooler, lasts longer; assures true wear surface •Specially formulated seals deliver extended seal life Stacked Valve Design •Makes servicing easy •0.268” stroke; 0.551” bore; requires 8.5 oz. pump oil Ultra-Compact 3/4" Hollow-Shafted Pump •Designed for direct mounting to gas engine Integral Pressure Unloader •Standard built-in bypass controls pressure & protects the pump 1/4" Fixed Chemical Injector Hose Barb •Allows addition of pressure washer safe soap to the water flow Be Sure To Measure Shaft & Flange Bolt Holes Accurately! •There is a 25% restock fee on returned pumps •See the Owner's Manual for dimensions •This is a bare pump; you will need to re-use your current fittings or purchase new ones (sold separately) |
Product Manual
