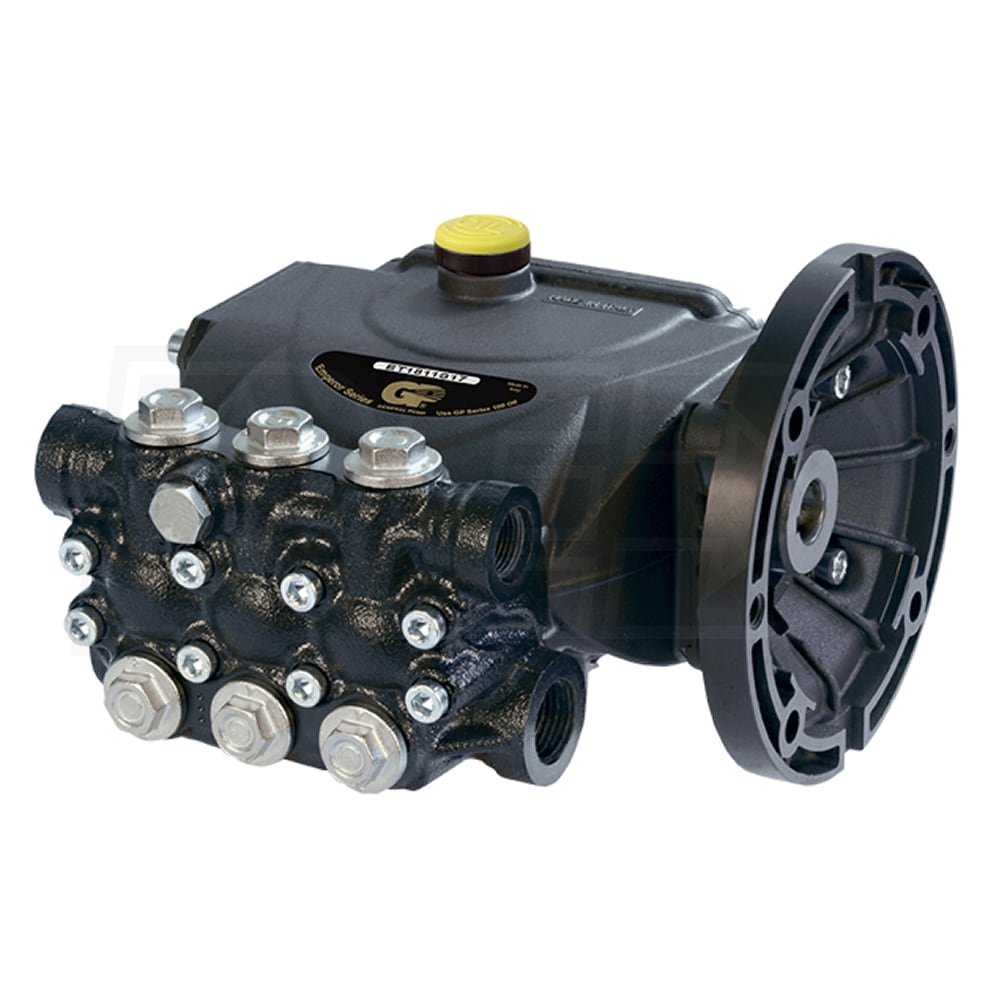

General Pump ET Series 2610 PSI 1.85 GPM Hollow Shaft Electric Flange Replacement Triplex Plunger Pump (3400 RPM)
Model: ET1504E34
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
$269.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States

Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Inflow
1/2
1/2" Threaded (Female)
Outflow
3/8
3/8" Threaded (Female)
Grade
Professional
Style
Electric
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)

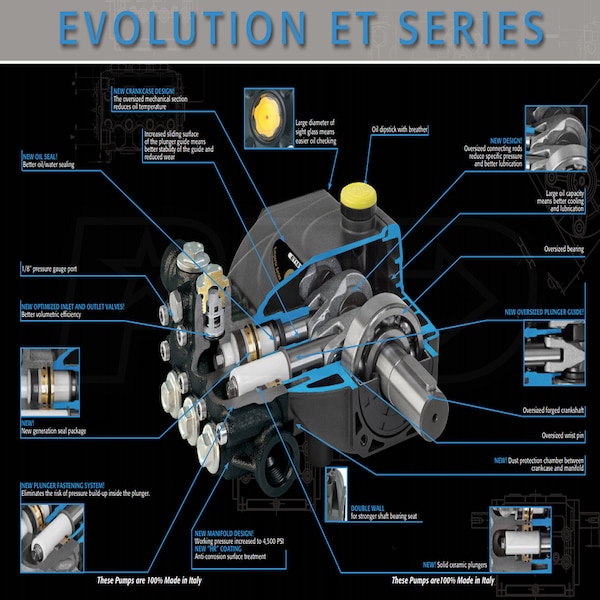

Features
Features
  • Quality Replacement For Worn Out Pumps
  • These pumps are 100% Made in Italy
  • “HR” anti-corrosion surface treatment on manifold
  • New Pump Design
  • Oversized connecting rods reduce specific pressure & improve lubrication
  • Solid Ceramic Plungers With Dual Guide System
  • Ceramic runs cooler & lasts longer; can be rebuilt
  • New plunger guide assembly reduces friction, extends seal life (patent pending)
  • Durable Components
  • Oversized forged crankshaft & crankshaft key increase performance
  • Optimized outlet valves deliver better volumetric efficiency
  • Large Diameter Sight Glass
  • Easier oil checking; dipstick with breather for easier maintenance
  • 8.5 oz. oil capacity means better cooling & lubrication
  • NEMA56C Electric Motor Mounting Flange w/ 5/8" Hollow Shaft Diameter
  • Inlet Port Thread 1/2”-14 BSP-F / Discharge Port 3/8”-19 BSP-F
  • Plunger stroke 157 in. (4 mm) / Plunger bore 591 in. (15 mm)
  • Max 2610 PSI, 1.85 GPM, up to 165°F; rated for motors up to 3.6 EBHP & 3400 RPM
  • Be Sure To Measure Shaft & Flange Bolt Holes Accurately!
  • There is a 25% restock fee on returned pumps

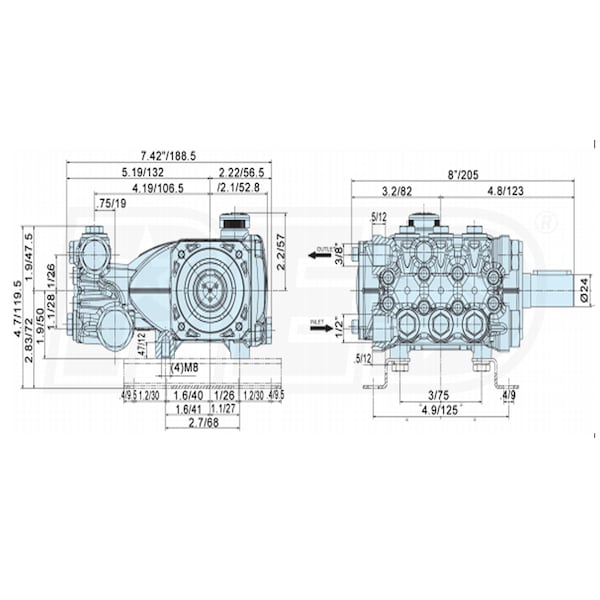

  • (Dimensions can be downloaded under the Specs tab in Manual PDF)
  • Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)
  • Pump ships as shown; you will need to re-use your connectors or purchase them separately
  • ***Shaft Size Measurements Must Be Precise***
Specifications
Accessories
Pump Brand
General Pump
Pump Type
Triplex Plunger
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Electric
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
1.85
Rated PSI
2610 PSI
Overview
Weight
11 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
7.3 Inches
Product Width
7.4 Inches
Product Height
5.5 Inches
Grade
Style
Inflow
1/2
1/2" Threaded (Female)
Outflow
3/8
3/8" Threaded (Female)
Grade
Professional
Style
Electric
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Features
Features
  • Quality Replacement For Worn Out Pumps
  • These pumps are 100% Made in Italy
  • “HR” anti-corrosion surface treatment on manifold
  • New Pump Design
  • Oversized connecting rods reduce specific pressure & improve lubrication
  • Solid Ceramic Plungers With Dual Guide System
  • Ceramic runs cooler & lasts longer; can be rebuilt
  • New plunger guide assembly reduces friction, extends seal life (patent pending)
  • Durable Components
  • Oversized forged crankshaft & crankshaft key increase performance
  • Optimized outlet valves deliver better volumetric efficiency
  • Large Diameter Sight Glass
  • Easier oil checking; dipstick with breather for easier maintenance
  • 8.5 oz. oil capacity means better cooling & lubrication
  • NEMA56C Electric Motor Mounting Flange w/ 5/8" Hollow Shaft Diameter
  • Inlet Port Thread 1/2”-14 BSP-F / Discharge Port 3/8”-19 BSP-F
  • Plunger stroke 157 in. (4 mm) / Plunger bore 591 in. (15 mm)
  • Max 2610 PSI, 1.85 GPM, up to 165°F; rated for motors up to 3.6 EBHP & 3400 RPM
  • Be Sure To Measure Shaft & Flange Bolt Holes Accurately!
  • There is a 25% restock fee on returned pumps
  • (Dimensions can be downloaded under the Specs tab in Manual PDF)
  • Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)
  • Pump ships as shown; you will need to re-use your connectors or purchase them separately
  • ***Shaft Size Measurements Must Be Precise***
Specifications
Accessories
Pump Brand
General Pump
Pump Type
Triplex Plunger
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Electric
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
1.85
Rated PSI
2610 PSI
Overview
Weight
11 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
7.3 Inches
Product Width
7.4 Inches
Product Height
5.5 Inches
Product Specs
+
Specifications
Accessories
Pump Brand
General Pump
Pump Type
Triplex Plunger
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Electric
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
1.85
Rated PSI
2610 PSI
Overview
Weight
11 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
7.3 Inches
Product Width
7.4 Inches
Product Height
5.5 Inches
