Features
Grade
Prosumer
Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
- High Quality Replacement For Worn Out Pumps
- Professional quality at an affordable price
- Can be rebuilt
- Solid Ceramic Plungers
- Ceramic runs cooler & lasts longer
- Durable Components
- Forged brass manifold lasts longer than cheaper models
- Die-cast, anodized aluminum oil-bath crankcase
- Unitized stainless steel inlet and discharge valves
- Standard SAE J609 Gasoline Mounting Flange
- Maximum 3000 PSI and 4 gallons per minute
- Use with up to 3400 RPM engines
- Crankcase oil capacity 14 ounces
- 1" shaft, plunger bore .591 in (15mm), & stroke .374 in. (9.5mm)
- Be Sure To Measure Shaft & Flange Bolt Holes Accurately!
- There is a 25% restock fee on returned pumps

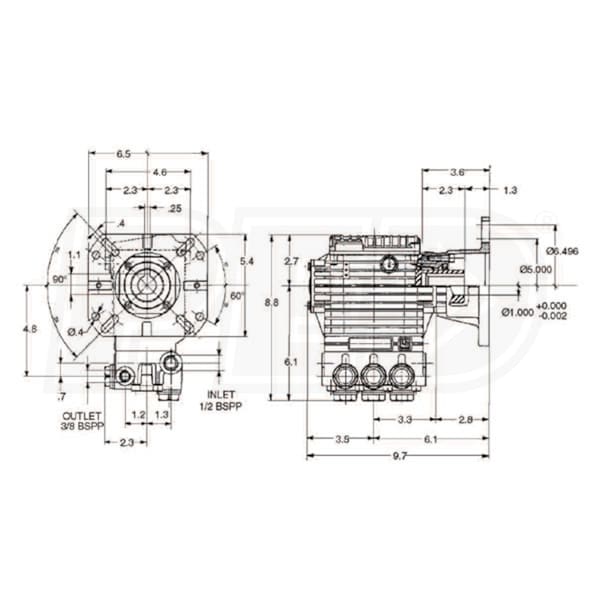

- (Dimensions can be downloaded under the Specs tab)

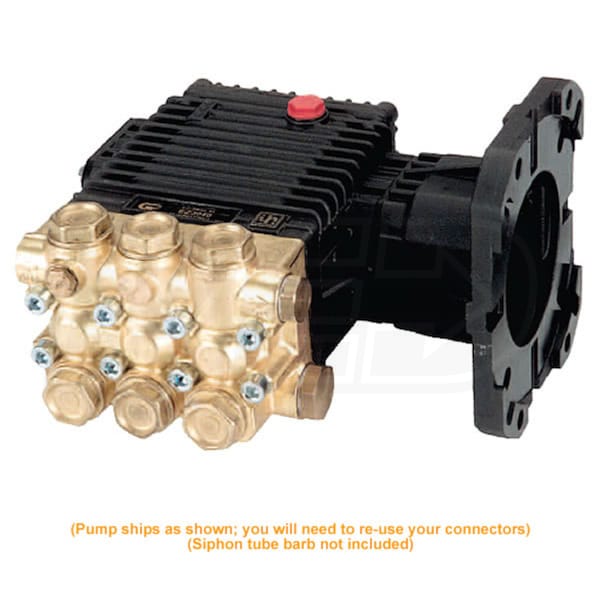

- Pump ships bare so you'll need to re-use your connectors or purchase them separately
- Please Call Us For Sizing Assistance w/ Information Below:
- 1. Age of Pump and Model # (must be no more than 15-yrs old)
- 2. Is the pump Vertical or Horizontal
- 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
- 4. Engine Brand and HP (model # if available would be helpful)
- ***Shaft Size Measurements Must Be Precise***
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
EZ3040G
Pump
Adjustable Pressure
No
Accessories
Pump Brand
General Pump
Pump Type
Triplex Plunger
Shaft Size
1
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Prosumer
Accessory Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Maximum GPM
Maximum GPM
Gallon per Minute
4
Rated PSI
3000 PSI
Chemical Injections
Sold Separately
Overview
Weight
19.1 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
8.8 Inches
Product Width
9.7 Inches
Product Height
6.5 Inches
