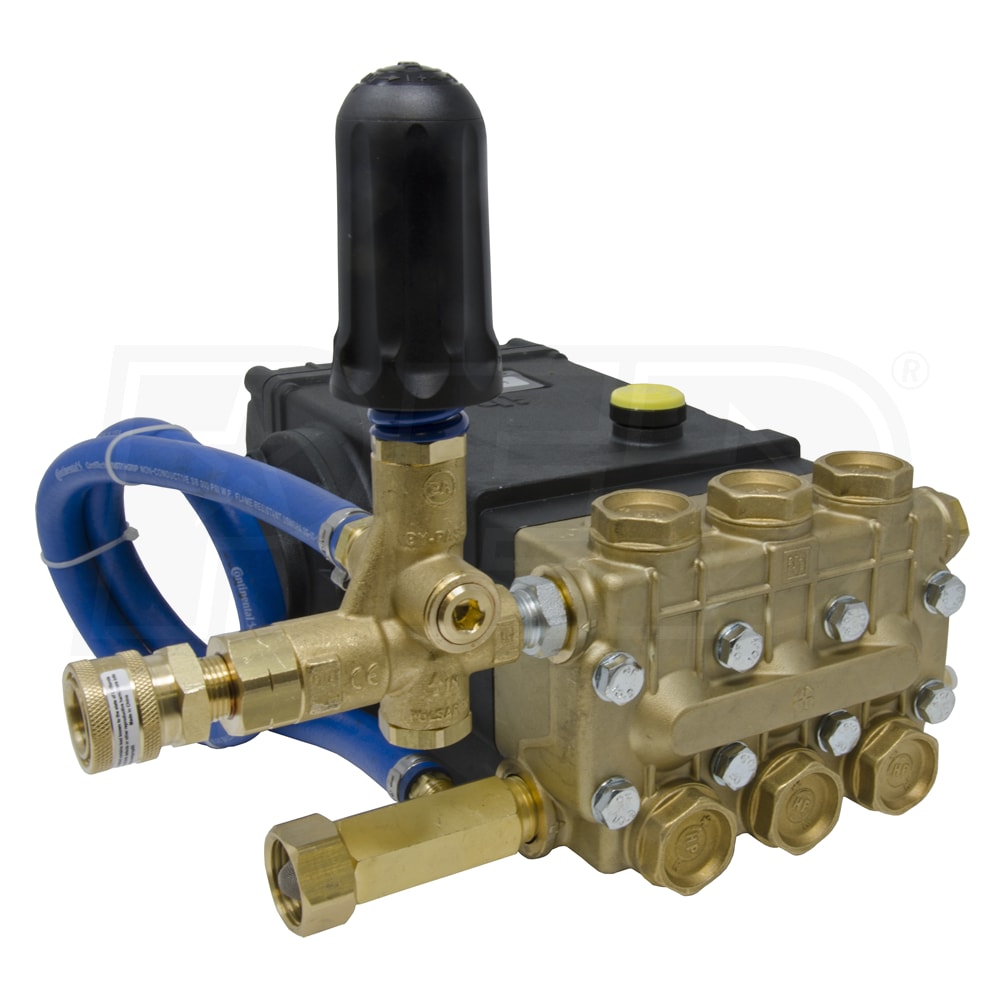

General Pump Fully Plumbed Made Ready 3500 PSI 4.0 GPM Solid Shaft Triplex Pressure Washer Pump (Belt Drive)

Model:

PMRTSS1511

Write a Review
$494.99
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.

General Pump Fully Plumbed Made Ready 3500 PSI 4.0 GPM Solid Shaft Triplex Pressure Washer Pump (Belt Drive)
General Pump Fully Plumbed Made Ready 3500 PSI 4.0 GPM Solid Shaft Triplex Pressure Washer Pump (Belt Drive)
Model: PMRTSS1511
$494.99
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Share

Features

Grade

Professional

Style

Gas

  • No-Hassle Replacement Pump
  • Fully Plumbed are ready to go - 4 bolts off - 4 bolts on
  • Get a great quality replacement assembly for less than a repair
  • Belt Drive 4000 PSI & 4 GPM Pumps; 1450 RPM
  • Designed for suction applications
  • Unitized stainless steel inlet and discharge valves
  • Solid ceramic plungers w/ continuously lubricated packings
  • EZ Unloader
  • Adjust the pressure to suit the task at hand
  • Eliminates back pressure when pulling a manual start engine
  • External Bypass Hose
  • Carries water to the inlet when the unloader valve opens
  • Adds safety if water circulates in pump for too long and quickly heats to dangerous temperatures
  • Fits Many Different Brands Of Belt Drive Pressure Washer
  • Inlet port thread 1/2-14 BSP-F; discharge port thread 1/2-14 BSP-F
  • .945 inch / 24 mm shaft diameter; 165° F max water temperature
  • High-Quality Components
  • Heavy-duty tapered roller bearing
  • Manifold with fine thread valve caps
  • Forged brass manifold with an exclusive lifetime warranty
  • Large Capacity Crankcase
  • Hold an impressive 37.2 oz
  • Die-cast, anodized aluminum oil-bath
  • Be Sure To Measure Flange Bolt Holes & Shaft Accurately!
  • There is a 25% restock fee on returned pumps
  • Pumps should not be allowed to operate in bypass mode for more than 1 minute
  • Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)
  • ***Shaft Size Measurements Must Be Precise***
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

PMRTSS1511
specs product image PID-83333
Accessories
Pump Brand
General Pump
Pump Type
Belt Drive
Shaft Size
Belt Drive
Pump Design
Horizontal
Adjustable Pressure
Yes
Accessory Grade
Professional
Accessory Style
Gas
Maximum GPM Learn More
4
Rated PSI
3500 PSI
Overview
Weight
37 Pounds
Consumer Warranty
5 Years
Product Length
14 Inches
Product Width
12.2 Inches
Product Height
12 Inches
UPC
682491134831
