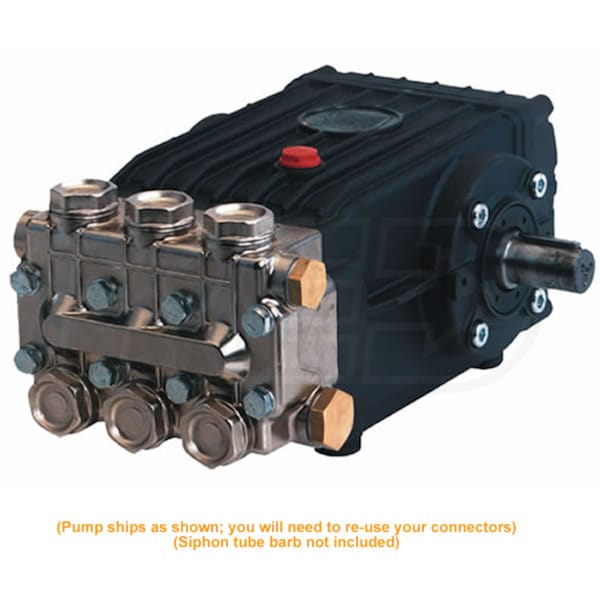

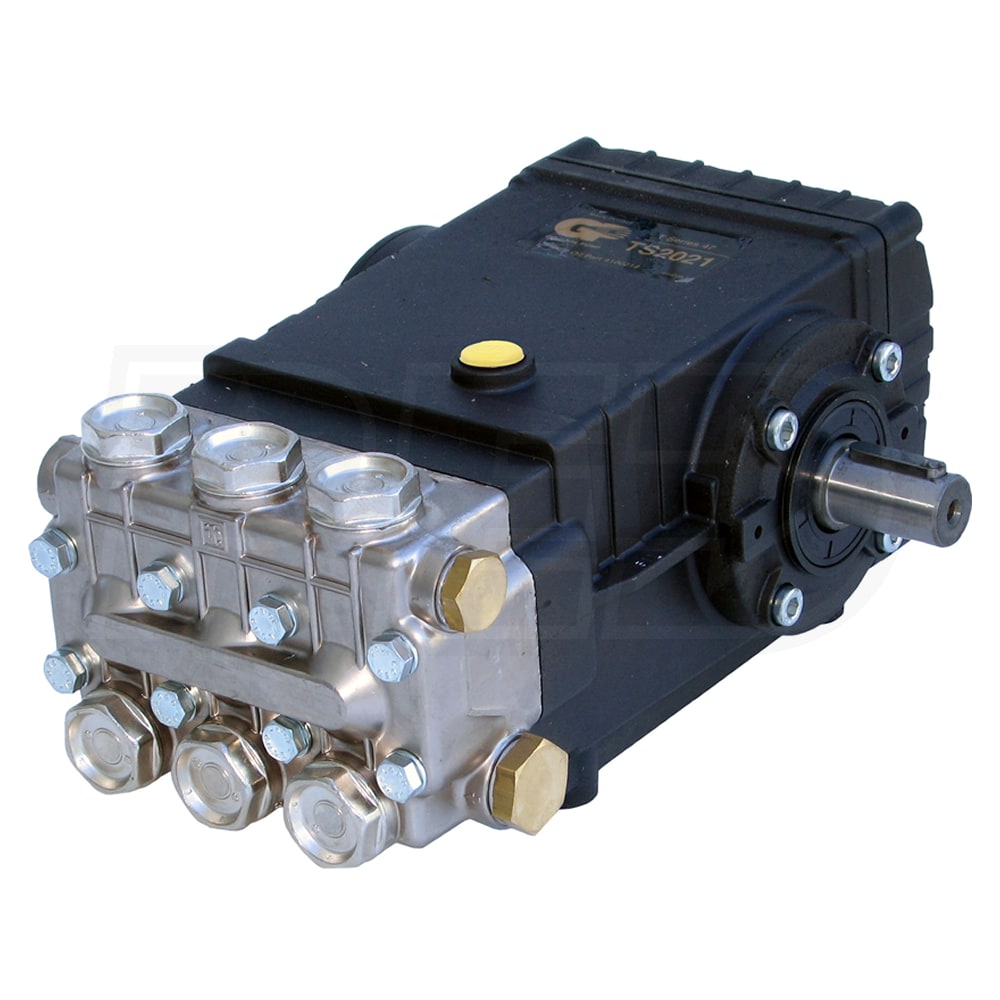

General Pump 47 Series 3500 PSI 4.5 GPM Solid Shaft Triplex Pressure Washer Pump (Belt Drive)
Model: TS2021
+
Share This Product
-
Product Description
-
3Reviews
-
3Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Grade
Professional
Style
Gas
Features
Features
- High Quality Replacement For Worn Out Pumps
- The preferred pump frame in the pressure cleaning industry
- Triplex Plunger Pump With Heavy Duty Tapered Roller Bearing
- Solid ceramic plungers run cooler
- Continuously lubricated packings last longer
- Durable Components
- Forged brass manifold lasts longer than cheaper models
- Over-sized connecting rods for maximum life
- Large-capacity, die-cast, anodized aluminum oil-bath crankcase
- Unitized stainless steel inlet and discharge valves
- 24 MM Solid Shaft (.945 inches) Handles 1125 RPM
- Inlet port thread 1/2-14 BSPP-F
- Discharge port thread 3/8-19 BSPP-F
- Plunger bore .787 in. / 20 mm, plunger stroke .630 in / 16mm
- Crankcase oil capacity 40.6 ounces
- Nickle plated for durability
- Be Sure To Measure Shaft & Flange Bolt Holes Accurately!
- There is a 25% restock fee on returned pumps
- This is a bare pump; you will need to re-use your current fittings or purchase new ones (sold separately)
Specifications
Pump
Pump Brand
General
Adjustable Pressure
No
Accessories
Pump Brand
General Pump
Pump Type
Belt Drive
Shaft Size
Belt Drive
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Maximum GPM
Maximum GPM
Gallon per Minute
4.45
Rated PSI
3500 PSI
Overview
Weight
32 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
12.2 Inches
Product Width
9.2 Inches
Product Height
6.9 Inches
UPC
682491016991
Grade
Style
Grade
Professional
Style
Gas
Features
Features
- High Quality Replacement For Worn Out Pumps
- The preferred pump frame in the pressure cleaning industry
- Triplex Plunger Pump With Heavy Duty Tapered Roller Bearing
- Solid ceramic plungers run cooler
- Continuously lubricated packings last longer
- Durable Components
- Forged brass manifold lasts longer than cheaper models
- Over-sized connecting rods for maximum life
- Large-capacity, die-cast, anodized aluminum oil-bath crankcase
- Unitized stainless steel inlet and discharge valves
- 24 MM Solid Shaft (.945 inches) Handles 1125 RPM
- Inlet port thread 1/2-14 BSPP-F
- Discharge port thread 3/8-19 BSPP-F
- Plunger bore .787 in. / 20 mm, plunger stroke .630 in / 16mm
- Crankcase oil capacity 40.6 ounces
- Nickle plated for durability
- Be Sure To Measure Shaft & Flange Bolt Holes Accurately!
- There is a 25% restock fee on returned pumps
- This is a bare pump; you will need to re-use your current fittings or purchase new ones (sold separately)
Specifications
Pump
Pump Brand
General
Adjustable Pressure
No
Accessories
Pump Brand
General Pump
Pump Type
Belt Drive
Shaft Size
Belt Drive
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Maximum GPM
Maximum GPM
Gallon per Minute
4.45
Rated PSI
3500 PSI
Overview
Weight
32 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
12.2 Inches
Product Width
9.2 Inches
Product Height
6.9 Inches
UPC
682491016991
Product Specs
+−
Specifications
Pump
Pump Brand
General
Adjustable Pressure
No
Accessories
Pump Brand
General Pump
Pump Type
Belt Drive
Shaft Size
Belt Drive
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Maximum GPM
Maximum GPM
Gallon per Minute
4.45
Rated PSI
3500 PSI
Overview
Weight
32 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
12.2 Inches
Product Width
9.2 Inches
Product Height
6.9 Inches
UPC
682491016991
Product Q&A
(3)
+−
Search Product Q&A's
Answered by Jim. the Pressure Washer Expert
+−
can you run hot water through theTS2021?
Marco M
from New Mexico
April 27, 2014
Answer
The MAX water inlet Temperature for this pump is 165 Degrees.
Was this answer helpful?
Yes
0
No
0
+−
Can the TS2021 pump have a direct mounting flange attached to it.
Mike
from
March 02, 2012
Answer
This pump has a 24mm solid shaft and primarily it is always a pulley driven pump, however there is a gear box available that can be mounted in between it and a gas engine so it can be direct mounted. There is also a flange and coupler to mount this to an electric motor. So if you needed to direct mount it, technically it can.
The parts needed to directly mount this pump would be an additional cost.
The parts needed to directly mount this pump would be an additional cost.
Was this answer helpful?
Yes
0
No
0
+−
Bill what size electric moter would I need to run the model TS2021 pump.
Mike
from
March 02, 2012
Answer
You would need approximately a 12-13 horsepower electric motor to operate this pump. If you click on the specs tab for this product, you will see an owner's manual link to the right. Click on that owner's manual link and check out page 4. You will see a chart that shows the requirements for the GP pumps.
I am posting a link to this pump on our site for you below:
General Pump model TS2021
I am posting a link to this pump on our site for you below:
General Pump model TS2021
Was this answer helpful?
Yes
0
No
0
