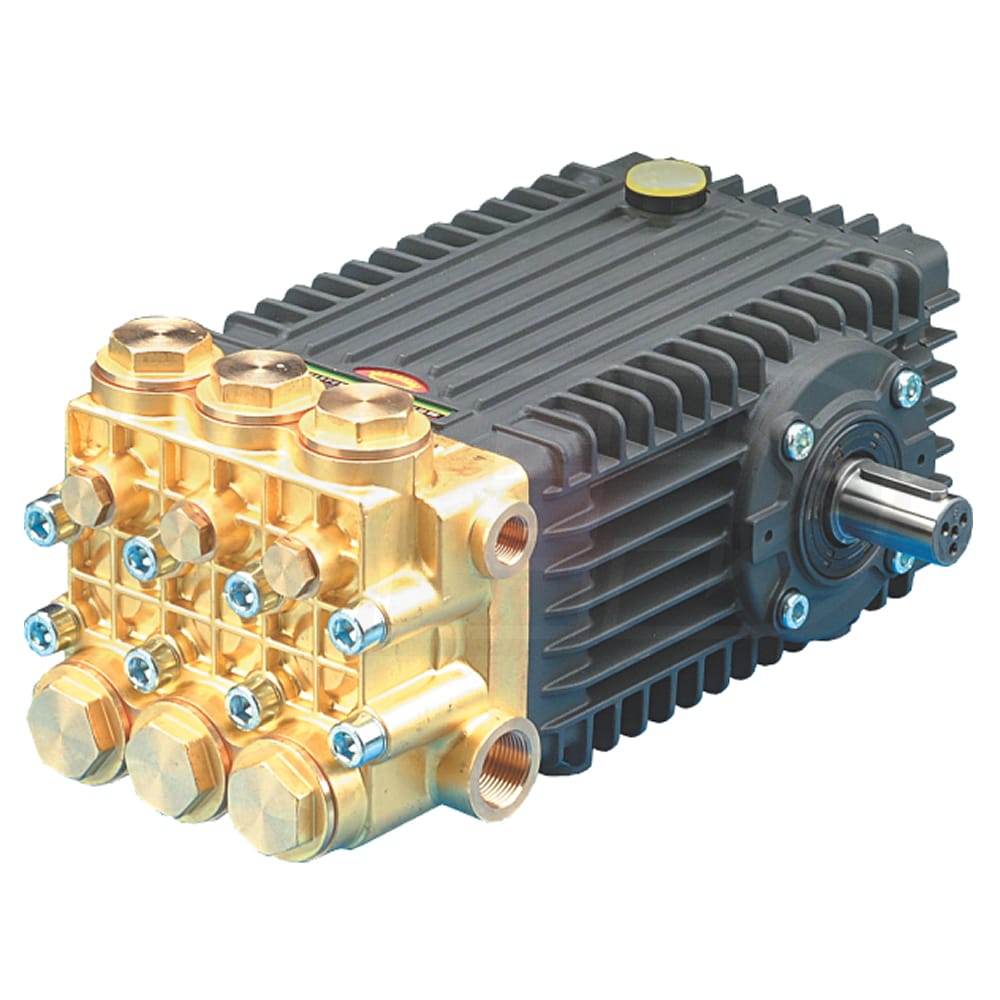

General Pump 66 Series 3600 PSI 8.5 GPM Solid Shaft Triplex Pressure Washer Pump (Belt Drive)
Model:
TSF2021
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Professional
Style
Gas
- High Quality Replacement For Worn Out Pumps
- The preferred pump frame in the pressure cleaning industry
- Triplex Plunger Pump With Heavy Duty Tapered Roller Bearing
- Solid ceramic plungers run cooler
- Continuously lubricated packings last longer
- Durable Components
- Forged brass manifold lasts longer than cheaper models
- Over-sized connecting rods for maximum life
- Large-capacity, die-cast, anodized aluminum oil-bath crankcase
- Unitized stainless steel inlet and discharge valves
- 24 MM Solid Shaft (.945 inches) Handles 1750 RPM
- Inlet port thread 1/2-14 BSPP-F
- Discharge port thread 3/8-19 BSPP-F
- Plunger bore .787 in. / 220 mm, plunger stroke .826 in / 21mm
- Crankcase oil capacity 37.2 ounces
- Nickel plated for durability
- Shaft Size Measurements Must Be Precise
- Dimensions are in the Spec sheet download under the Specs tab
- There is a 25% restock fee on returned pumps
- This is a bare pump; you will need to re-use your current fittings or purchase new ones (sold separately)
California residents see
Warning: This product can expose you to chemicals including Ethylbenzene which is known to the State of California to cause Cancer, and Toluene which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
TSF2021
Pump
Pump Brand
General
Adjustable Pressure
No
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
40.7 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
14.94 Inches
Product Width
9.78 Inches
Product Height
6.99 Inches
Power Type
Gas
UPC
682491026518
Accessories
Pump Brand
General Pump
Pump Type
Belt Drive
Shaft Size
Belt Drive
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Maximum GPM
Maximum GPM
Gallon per Minute
8.5
Rated PSI
3600 PSI
Chemical Injections
Sold Separately
