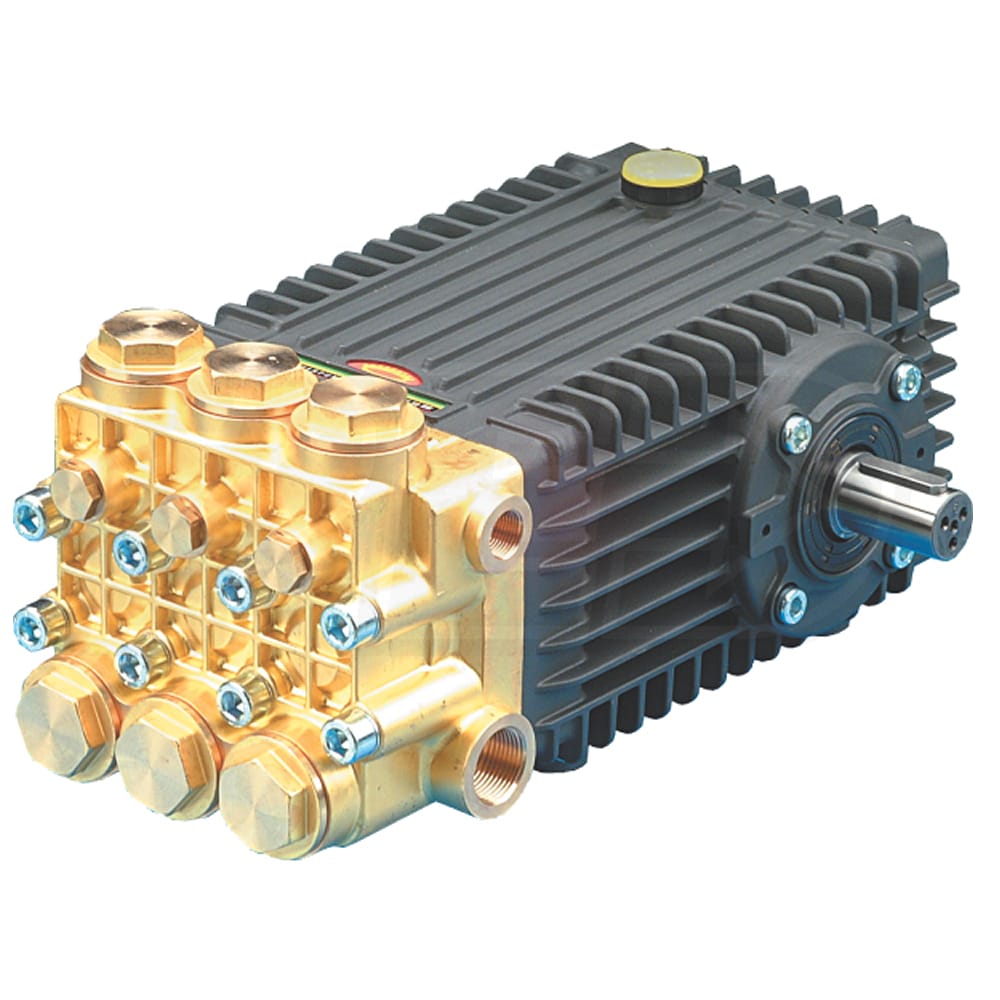

General Pump 66 Series 2500 PSI 12.0 GPM Solid Shaft Triplex Pressure Washer Pump (Belt Drive)

General Pump 66 Series 2500 PSI 12.0 GPM Solid Shaft Triplex Pressure Washer Pump (Belt Drive)
Our Price
Compare Prices
Shipping Info
Model: TSF2421
(Based on expert analysis, manufacturer ratings and customer reviews)
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews (0)
Write A Review
$849.95

Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Factory-Direct
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Grade
Professional
Style
Gas
Features
Features
  • High Quality Replacement For Worn Out Pumps
  • The preferred pump frame in the pressure cleaning industry
  • Triplex Plunger Pump With Heavy Duty Tapered Roller Bearing
  • Solid ceramic plungers run cooler
  • Continuously lubricated packings last longer
  • Durable Components
  • Forged brass manifold lasts longer than cheaper models
  • Over-sized connecting rods for maximum life
  • Large-capacity, die-cast, anodized aluminum oil-bath crankcase
  • Unitized stainless steel inlet and discharge valves
  • 24 MM Solid Shaft (.945 inches) Handles 1450 RPM
  • Inlet port thread 3/4-14 BSP-F
  • Discharge port thread 3/8-19 BSP-F
  • Plunger bore .945 / 24 mm, plunger stroke .826 in / 21 mm
  • Crankcase oil capacity 37.2 ounces
  • Rated PSI 125 and max temperature 165 F
  • Be Sure To Measure Shaft & Flange Bolt Holes Accurately!
  • There is a 25% restock fee on returned pumps
  • This is a bare pump; you will need to re-use your current fittings or purchase new ones (sold separately)
Specifications
Pump
Pump Brand
General
Adjustable Pressure
No
Accessories
Pump Brand
General Pump
Pump Type
Belt Drive
Shaft Size
Belt Drive
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
12
Rated PSI
2500 PSI
Chemical Injections
Sold Separately
Overview
Weight
40.7 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
14.94 Inches
Product Width
9.78 Inches
Product Height
6.99 Inches
Power Type
Gas
UPC
682491026525
Grade
Style
Grade
Professional
Style
Gas
Features
Features
  • High Quality Replacement For Worn Out Pumps
  • The preferred pump frame in the pressure cleaning industry
  • Triplex Plunger Pump With Heavy Duty Tapered Roller Bearing
  • Solid ceramic plungers run cooler
  • Continuously lubricated packings last longer
  • Durable Components
  • Forged brass manifold lasts longer than cheaper models
  • Over-sized connecting rods for maximum life
  • Large-capacity, die-cast, anodized aluminum oil-bath crankcase
  • Unitized stainless steel inlet and discharge valves
  • 24 MM Solid Shaft (.945 inches) Handles 1450 RPM
  • Inlet port thread 3/4-14 BSP-F
  • Discharge port thread 3/8-19 BSP-F
  • Plunger bore .945 / 24 mm, plunger stroke .826 in / 21 mm
  • Crankcase oil capacity 37.2 ounces
  • Rated PSI 125 and max temperature 165 F
  • Be Sure To Measure Shaft & Flange Bolt Holes Accurately!
  • There is a 25% restock fee on returned pumps
  • This is a bare pump; you will need to re-use your current fittings or purchase new ones (sold separately)
Specifications
Pump
Pump Brand
General
Adjustable Pressure
No
Accessories
Pump Brand
General Pump
Pump Type
Belt Drive
Shaft Size
Belt Drive
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
12
Rated PSI
2500 PSI
Chemical Injections
Sold Separately
Overview
Weight
40.7 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
14.94 Inches
Product Width
9.78 Inches
Product Height
6.99 Inches
Power Type
Gas
UPC
682491026525
Product Specs
+
Specifications
Pump
Pump Brand
General
Adjustable Pressure
No
Accessories
Pump Brand
General Pump
Pump Type
Belt Drive
Shaft Size
Belt Drive
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
12
Rated PSI
2500 PSI
Chemical Injections
Sold Separately
Overview
Weight
40.7 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
14.94 Inches
Product Width
9.78 Inches
Product Height
6.99 Inches
Power Type
Gas
UPC
682491026525
