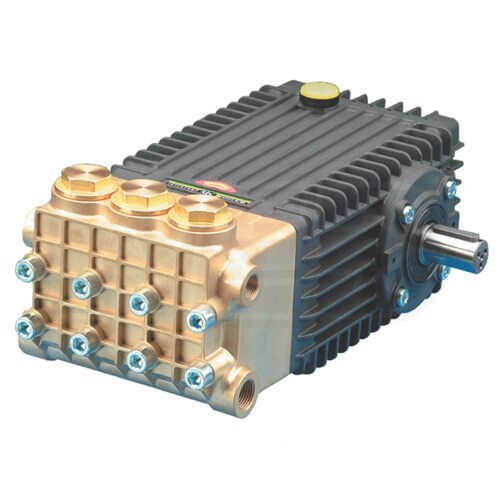

                    General Pump 66 Series 5100 PSI 5.5 GPM (Solid Shaft) Triplex Pressure Washer Pump (Belt Drive)
Model:





                                                TSP1821
        +
        Share This Product


Recommended Accessories
                                Expert Recommended Accessories
                                Selected by Jim, our Expert


                        Required Accessories
                        9

                    These accessories are required to properly setup/install this product.

                        Optional Accessories
                        10

                    Features
Grade
Professional
Style
Gas
- High Quality Replacement For Worn Out Pumps
 - The preferred pump frame in the pressure cleaning industry
 - Triplex Plunger Pump With Heavy Duty Tapered Roller Bearing
 - Solid ceramic plungers run cooler
 - Continuously lubricated packings last longer
 - Durable Components
 - Forged brass manifold lasts longer than cheaper models
 - Over-sized connecting rods for maximum life
 - Large-capacity, die-cast, anodized aluminum oil-bath crankcase
 - Unitized stainless steel inlet and discharge valves
 - 24 MM Solid Shaft (.945 inches) Handles 1450 RPM
 - Inlet port thread 1/2" BSP-F
 - Discharge port thread 3/8" BSP-F
 - Plunger bore .709 in / 18 mm, plunger stroke .826 in / 21 mm
 - Crankcase oil capacity 37.2 ounces
 - Nickle plated for durability
 - Be Sure To Measure Flange Bolt Holes & Shaft Accurately!
 - There is a 25% restocking fee on returned pumps
 - See the Owner's Manual (under the Specs tab) for dimensions
 - Pump ships bare so you'll need to re-use your connectors & siphon tube or purchase them separately
 - Please Call Us For Sizing Assistance w/ Information Below:
 - 1. Age of Pump and Model # (must be no more than 15-yrs old)
 - 2. Is the pump Vertical or Horizontal
 - 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
 - 4. Engine Brand and HP (model # if available would be helpful)
 - ***Shaft Size Measurements Must Be Precise***

California residents see
                        Warning: This product can expose you to chemicals including Ethylbenzene which is known to the State of California to cause Cancer, and Toluene which is known to the State of California to cause Developmental Harm.
 For more information go to: www.p65Warnings.ca.gov
                Specifications
TSP1821

General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
51.8 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
13.8 Inches
Product Width
9.8 Inches
Product Height
7.7 Inches
Power Type
Gas
UPC
682491114727
Accessories
Pump Brand
General Pump
Pump Type
Belt Drive
Shaft Size
Belt Drive
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Maximum GPM




            Maximum GPM
            Gallon per Minute


5.5
Rated PSI
5100 PSI
Chemical Injections
Sold Separately
