General Pump 47 Series 3500 PSI 4.5 GPM Triplex Pressure Washer Pump (Belt Drive / Left Hand)
Model:
TSS1021L
Number of Reviews
(0)
Write A Review
Ask a Question
$479.99
Free Shipping
×
Free Shipping
*This product qualifies for
Free Shipping
anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
View Shipping Details
Shipping Details
ZIP Code
Update
Free to Lower 48 States
Standard Rates to
Alaska
,
Hawaii
*We currently CANNOT ship this product to Canada or any destination outside of the United States
+
General Pump 47 Series 3500 PSI 4.5 GPM Triplex Pressure Washer Pump (Belt Drive / Left Hand)
Model: TSS1021L
Number of Reviews
(0)
Ask a Question
$479.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share
+
Share This Product
Recommended Accessories
+
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Add All Required Accessories
Optional Accessories
10
Features
×
Grade
Professional
Style
Gas

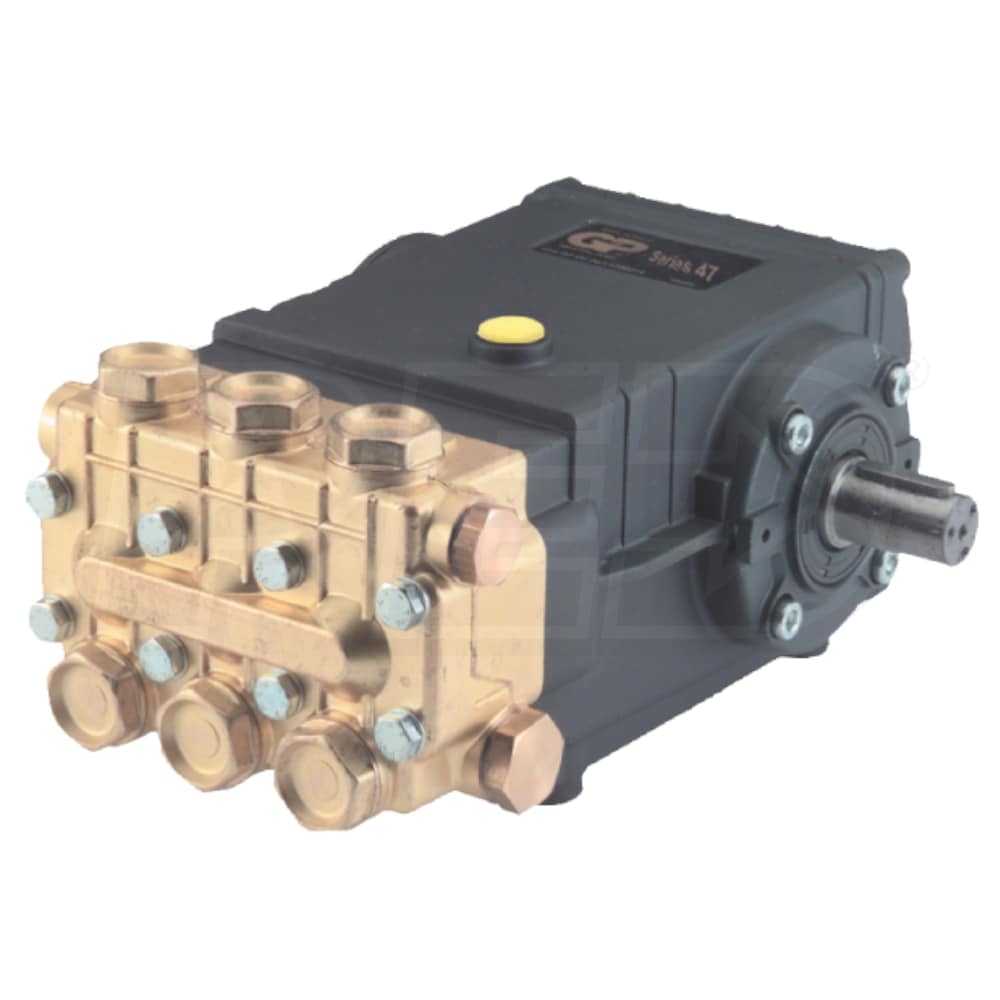

***Pump Is Left For Hand Pumps - Image Shows Right Hand Pump ***
High Quality Replacement For Worn Out Pumps
The preferred pump frame in the pressure cleaning industry
Triplex Plunger Pump With Heavy Duty Tapered Roller Bearing
Solid ceramic plungers run cooler
Continuously lubricated packings last longer
Durable Components
Forged brass manifold lasts longer than cheaper models
Over-sized connecting rods for maximum life
Large-capacity, die-cast, anodized aluminum oil-bath crankcase
Unitized stainless steel inlet and discharge valves
24 MM Solid Shaft (.945 inches) Handles 1125 RPM
Inlet port thread 1/2-14 BSPP-F
Discharge port thread 3/8-19 BSPP-F
Plunger bore .787 in. / 20 mm, plunger stroke .630 in / 16mm
9.2 EBHP and crankcase oil capacity 40.6 ounces
Shaft Size Measurements Must Be Precise
Dimensions are in the Spec sheet download under the Specs tab
There is a 25% restock fee on returned pumps
This is a bare pump; you will need to re-use your current fittings or purchase new ones (sold separately)
California residents see
Prop 65 WARNINGS
Show All Features
×
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to:
www.p65Warnings.ca.gov
Specifications
+
TSS1021L
Pump
Pump Brand
General
Adjustable Pressure
No
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
32 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
12.6 Inches
Product Width
9.2 Inches
Product Height
6.9 Inches
Power Type
Gas
Accessories
Pump Brand
General Pump
Pump Type
Belt Drive
Shaft Size
Belt Drive
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Maximum GPM
×
Maximum GPM
Gallon per Minute
4.5
Rated PSI
3500 PSI
Chemical Injections
Sold Separately
