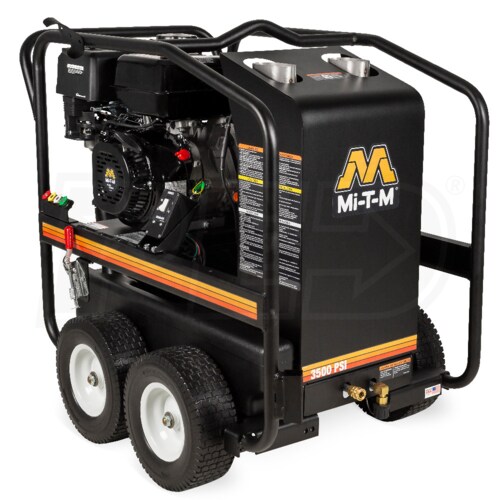

Mi-T-M HSP Professional 3500 PSI (Gas - Hot Water) Pressure Washer w/ AR Pump & Vanguard Engine

Model:

HSP-3504-3MGV

Write A Review
$5,199.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 8-12 Weeks

Mi-T-M HSP Professional 3500 PSI (Gas - Hot Water) Pressure Washer w/ AR Pump & Vanguard Engine
Mi-T-M HSP Professional 3500 PSI (Gas - Hot Water) Pressure Washer w/ AR Pump & Vanguard Engine
Model: HSP-3504-3MGV
$5,199.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Pressure Washers Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Style

Gas Warm Water

Water Pressure

3500 PSI

Water Flow

3.3 GPM

Cleaning Speed

11550 Cleaning Units

Engine

  • HSP Series Gasoline Direct Drive Pressure Washer
  • Tackle tough jobs where heat and power are a must
  • One of the most popular hot water pressure washers
  • Patented Electro Magnetic Firing System For The Burner
  • No need for a battery, generator, or blower motor
  • Maintenance friendly with stator coil and solenoid control

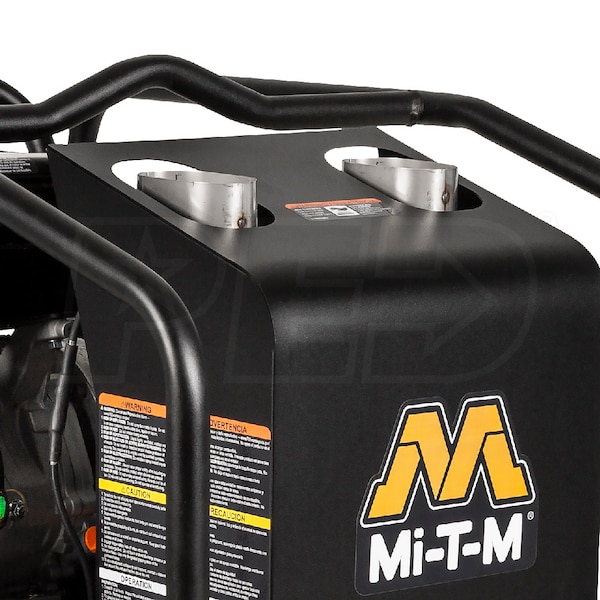

  • Energy-Efficient Top-Fired Heat Exchanger
  • Convenient troubleshooting and easy maintenance
  • Water heater can use either diesel fuel or kerosene
  • Heats water up 150F above ambient temperature; 200F max.
  • Burns 294,000 BTU per hour and burner fuel consumption is 2.14 GPH
  • Vanguard 408cc Commercial-Grade OHV V-Twin Engine
  • Full pressure lubricatin with spin-on oil filter
  • Cooler cleaner technology reduces engine and oil temperatures
  • Low vibration, lower emissions, improved valve life & better fuel economy
  • Reliable AR Triplex Plunger Pump
  • Ceramic plungers run cooler & last longer
  • Forged brass manifold, thermal relief valve & external bypass
  • Factory pre-set unloader must be adjusted by trained Mi-T-M Rep.
  • Reinforced Powder Coated Steel Frame
  • Resist rust and corrosion for a long lifespan

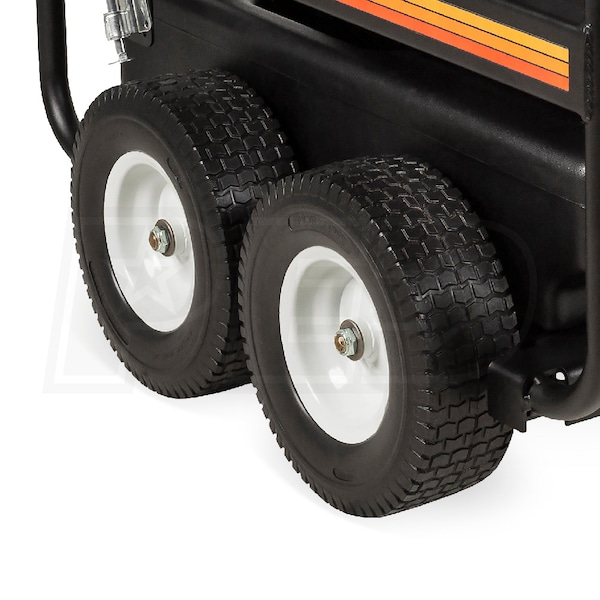

  • Center balanced lift and 13-inch flat-free tires
  • Dual Lance with Professional Grade Spray Gun
  • Includes quick connect nozzles - 0, 15, 25 & 40
  • Adjustable high/low pressure dual lance with insulated trigger gun
  • 50-Foot Hot Water High Pressure Hose
  • 3/8-inch steel wire-braided with swivel and quick connects
  • Built-in Low-Pressure Detergent Injector
  • Durable plastic hose material with strainer
  • Allows the user to apply the recommended detergents
  • Manufacturer Warranty
  • 90 days - accessories, 7 years - pump, 3 years - coil & engine
  • Product Image Disclaimer: "PED is not responsible for any variances from the product in the image and the item you purchase due to supply chain issues. Please review all product specs prior to purchase."
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

HSP-3504-3MGV
specs product image PID-145282
Overview
Product Category
Pressure Washer
Weight
428 Pounds
CA (CARB) Compliant
Yes
Certification
CSA
Consumer Warranty
90 Days
Commercial Warranty
90 Days
Product Length
43 Inches
Product Width
30 Inches
Product Height
41 Inches
Power Type
Gas
UPC
016977005054
Engine
Engine Brand
Vanguard
Starter
Recoil
HP
16 HP
CC
408 CC
Fuel Tank Size
1.51 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Pump
Pump Brand
AR
Pump Type
Triplex Plunger
Adjustable Pressure
Yes
Chemical Injection
Down-Stream
Water Temperature
Hot
Consumer Pump Warranty
7 Years
Commercial Pump Warranty
7 Years
Water Pressure
3500 PSI
Water Flow
3.3 GPM
Housing
Frame Type
4-Wheel Cart
Wheels
NeverFlat
Hose
Hose Length
50 Feet
Hose Material
Wire Reinforced
Hose Diameter
3/8 Inch
Hose Connections
Quick-Connect
Non-Marking
No
Spray Gun
Spray Gun Connection
Quick-Connect
Spray Gun Grade
Professional
Spray Gun Wand
Dual Wand
Spray Tips
Quick Connect Tips (4)
Turbo Nozzle
Sold Separately
Burner
Burner Fuel
Diesel/Kerosene
Burner Fuel Tank Size
5.5 Gallons
Temperature Control
Fixed
