Grade
|
Style
|
Inflow
Garden Hose (Female) |
Outflow
22m Threaded (Male) |

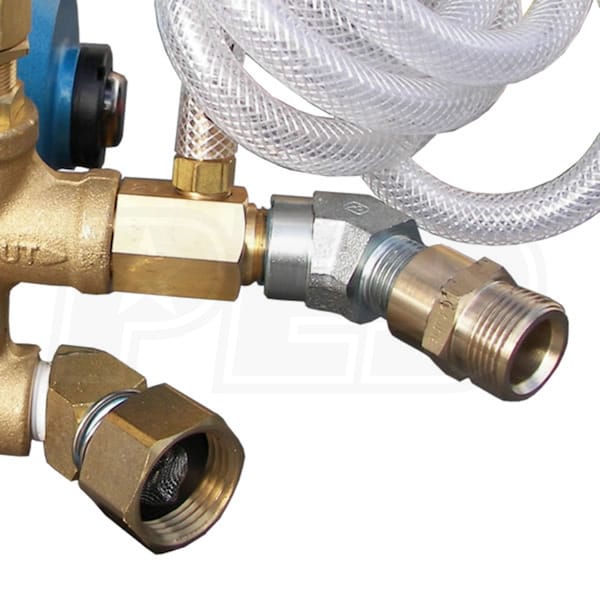

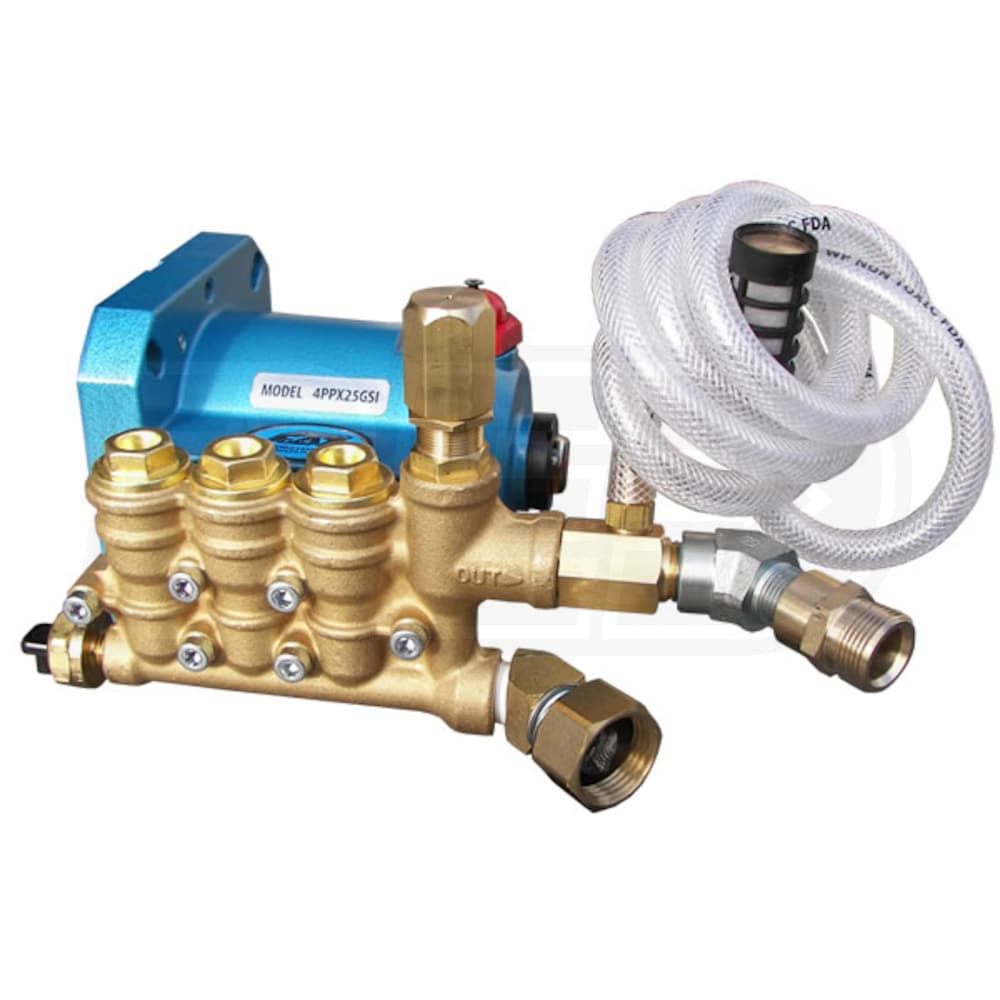

| Why Repair A Worn Out Pump? •"Slap" on a new one at a Slap Happy price •Get a great quality replacement assembly for less than a repair CAT Brand Pump Kit Is Ready To Install •Comes with unloader, pressure relief valve, siphon tube, •M22 male threaded fitting, & garden hose inlet w/ filter Concentric Solid Ceramic Plungers •Ceramic runs cooler, lasts longer; assures true wear surface •Specially formulated seals deliver extended seal life Stacked Valve Design •0.268” stroke; 0.551” bore; requires 8.5 oz. pump oil •1/4" fixed chemical injector hose barb with siphon tube Ultra-Compact 3/4" Hollow-Shafted Pump •Designed for direct mounting to gas engine; 3450 maximum RPM Integral Pressure Unloader •Standard built-in bypass controls pressure & protects the pump Be Sure To Measure Shaft & Flange Bolt Holes Accurately! •There is a 25% restock fee on returned pumps •See the Owner's Manual (under the Specs tab) for dimensions |
CAT Maintenance Guide
