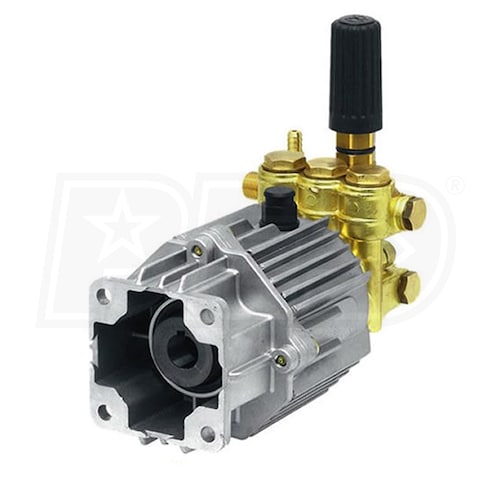

                    AR 2700 PSI 2.5 GPM (3/4" Shaft) Axial Pressure Washer Pump w/ Unloader
Model:





                                                SJV25G27D-F7
        +
        Share This Product


Recommended Accessories


                                Expert Recommended Accessories
                                Selected by Jim, our Expert


                        Required Accessories
                        9

                    These accessories are required to properly setup/install this product.

                        Optional Accessories
                        10

                    Features
Grade
Professional
Style
Gas
Pump Brand
AR
Outflow
3/8" Threaded (Male)
- High Quality Replacement For Worn Out Pumps
- Professional grade is ideal for all general cleaning applications
- Axial Cam Pump With Unloader
- Direct drive for convenience and durability
- Built-in pressure control valve for optimal performance
- Standard Matching Gasoline Mounting Flange
- Convenient connection to most 3/4" gas engine flange
- 3/4" hollow shaft spins at 3400 rpm
- Bore diameter 15mm; stroke 5.8 mm
- Water inlet: 1/2" male NPT; water outlet: 3/8" male NPT
- 4.5 horsepower pump
- Powerful And Versatile
- Will push 2.5 gpm @ 2700 psi
- Ideal for 5 to 6.5 HP engines
- Diecast crankcase with large cooling fins
- Seals designed to continuously self lubricate
- Be Sure To Measure The Shaft & Flange Bolt Holes Accurately!
- There is a 25% restock fee for returned pumps

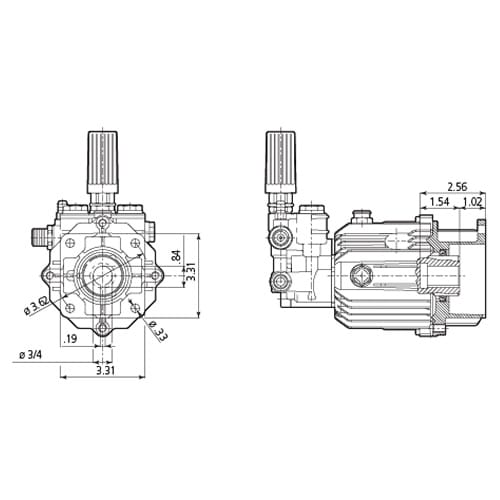

- See the Owner's Manual (under the Specs tab) for dimensions
- Pump ships bare so you'll need to re-use your connectors & siphon tube or purchase them separately
- Please Call Us For Sizing Assistance w/ Information Below:
- 1. Age of Pump and Model # (must be no more than 15-yrs old)
- 2. Is the pump Vertical or Horizontal
- 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
- 4. Engine Brand and HP (model # if available would be helpful)
- ***Shaft Size Measurements Must Be Precise***
California residents see
                        Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
 For more information go to: www.p65Warnings.ca.gov
                Specifications
SJV25G27D-F7

Pump
Pump Brand
AR
Pump Type
Axial Cam
Adjustable Pressure
Yes
Chemical Injection
Siphon Tube
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
11 Pounds
Consumer Warranty
1 Year
UPC
192216216570
Accessories
Pump Brand
AR
Pump Type
Axial Cam
Shaft Size
3/4
Pump Design
Horizontal
Adjustable Pressure
Yes
Accessory Grade
Professional
Accessory Style
Gas
Outflow
3/8" Threaded (Male)
Maximum GPM




            Maximum GPM
            Gallon per Minute


2.5
Rated PSI
2700 PSI
Chemical Injections
Siphon Tube
Reviews
(10)
                        AR North America SJV25G27D-F7 Reviews & Ratings

                                        Product Q&A
                    (7)



                                Product Questions
                                Answered by Jim, the Pressure Washer Expert

                        Will this fit onto a 5.5-horsepower Honda engine?
Elijah
 from Michigan
 October 01, 2023
What size are the threads on the inlet side of the pump?  I need to get from my garden hose to the pump with an adapter.
David Allis
 from Michigan
 June 08, 2012
I have a Troy Built with 2.6 gpm,6.75hp,2850psi, 3/4 hollow shaft. Will the AR blue Clean #sjv25g27d fit, picture looks identical but cant see other end.
Steve
 from
 March 24, 2012
I hae a honda motor model number D25133 and it has a 7/8 horizontal shaft.  I am looking for a AR water pump that will fit the 7/8 shaft.  what do you recommend
Michael Sallus
 from California
 April 07, 2011
where do you add the oil in a preasure washer pump
Richard Forrester
 from Alabama
 April 04, 2011
Im replacing my pressure washer pump that has the part number ar xtv 3g22 with an ar sjv25g27d-f7-270.  Do u know if the mounting holes are the same and if this part will even work for my pressure washer.
Kenneth E Smith
 from Kansas
 March 27, 2011
I need a new 2500-3000 psi pump to replace my existing. I have a 5 hp honda engine and need to know what details you need to size the correct replacement pump.
Dave Moeller
 from Indiana
 March 27, 2011
