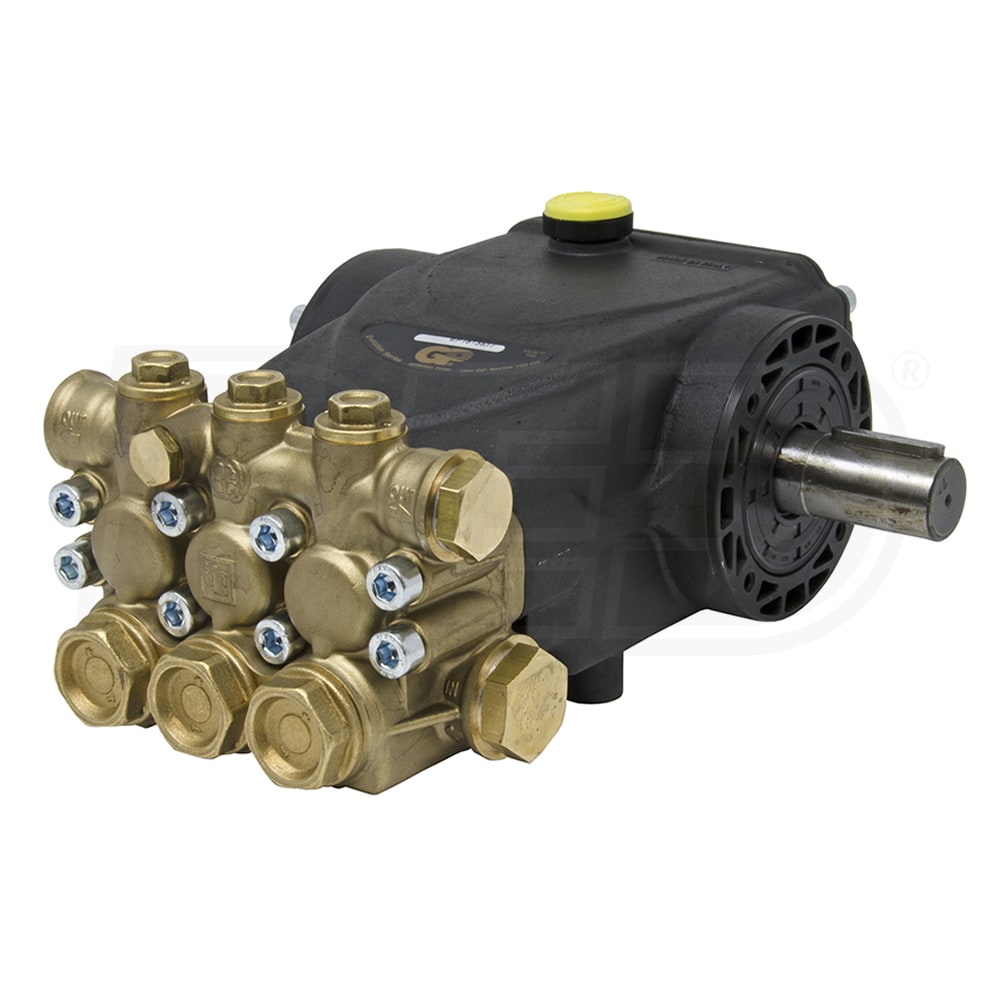

General Pump Evolution Series 2900 PSI 4.2 GPM Solid Shaft Triplex Pressure Washer Pump (Belt Drive)

Model:

EP1813S17

Write a Review
$299.99
Free Shipping
  Learn More About Free Freight
Backordered
Estimated Availability November 16, 2021
Shipping to60601

General Pump Evolution Series 2900 PSI 4.2 GPM Solid Shaft Triplex Pressure Washer Pump (Belt Drive)
General Pump Evolution Series 2900 PSI 4.2 GPM Solid Shaft Triplex Pressure Washer Pump (Belt Drive)
Model: EP1813S17
$299.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Pressure Washers Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Gas

Inflow

1/2" Threaded (Female)

Outflow

3/8" Threaded (Female)

  • Quality Replacement For Worn Out Pumps
  • New forged brass manifold increases working pressure to 4000 PSI
  • New Pump Design
  • Connecting rods reduce specific pressure & improve lubrication
  • Solid Ceramic Plungers With Dual Guide System
  • Ceramic runs cooler & lasts longer; can be rebuilt
  • New plunger guide assembly reduces friction, extends seal life (patent pending)
  • Durable Components
  • Oversized forged crankshaft & crankshaft key increase performance
  • Optimized outlet valves deliver better volumetric efficiency
  • Large Diameter Sight Glass
  • Easier oil checking; dipstick with breather for easier maintenance
  • Large 15 oz. oil capacity means better cooling & lubrication

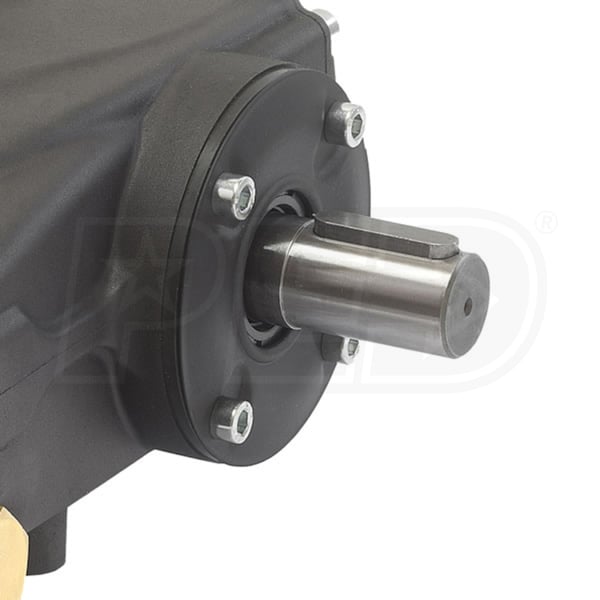

  • 24mm Solid Shaft
  • Maximum 2900 PSI, 4.2 gallons per minute, up to 165°F

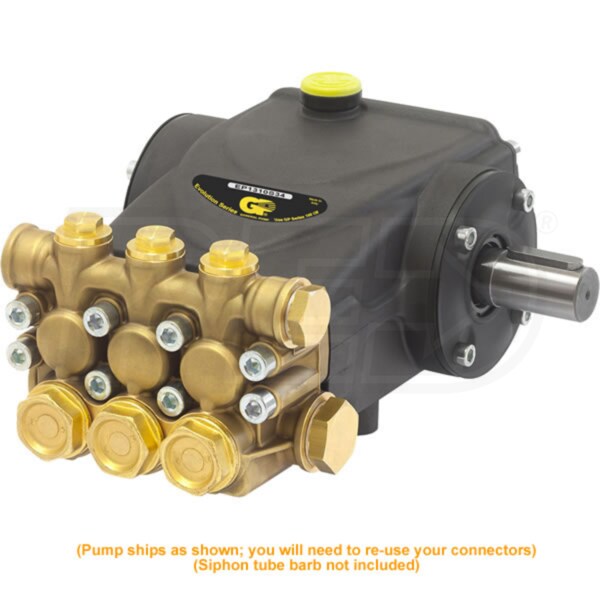

  • Pump ships as shown; you will need to re-use your connectors or purchase them separately
  • Shaft diameter .945 inches (24 mm)
  • Be Sure To Measure Shaft & Flange Bolt Holes Accurately!
  • There is a 25% restock fee on returned pumps
  • (Dimensions can be downloaded under the Specs tab in Manual PDF)
  • Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)
  • ***Shaft Size Measurements Must Be Precise***
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

EP1813S17
specs product image PID-68392
Accessories
Pump Brand
General Pump
Pump Type
Belt Drive
Shaft Size
Belt Drive
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Maximum GPM Learn More
4.2
Rated PSI
2900 PSI
Overview
Weight
15 Pounds
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
9.5 Inches
Product Width
8.38 Inches
Product Height
5.1 Inches
UPC
682491065975
