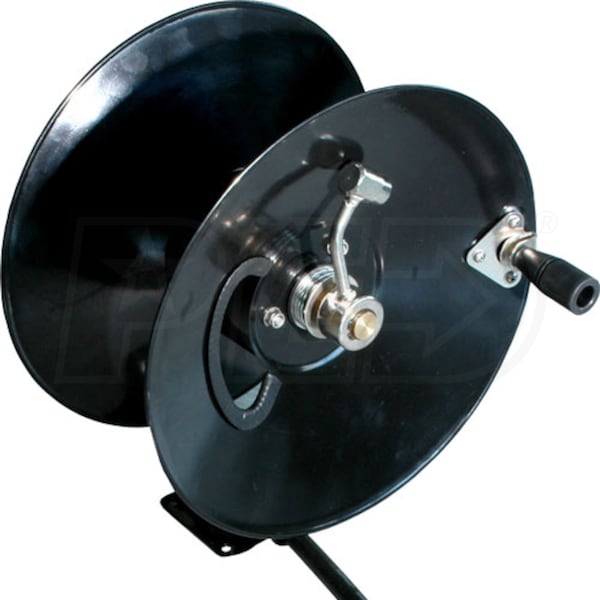

General Pump 5000 PSI Hose Reel w/ Mounting Base 100' x 3/8"

General Pump 5000 PSI Hose Reel w/ Mounting Base 100' x 3/8"
Model: DHR50100D
$99.99
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Tax-Free (Except IL)
No Sales Tax* (Except IL)$99.99Buy Now
No Sales Tax* (Except IL)$99.99Visit Site
Factory-Direct
Ships in 2-5 Business Days
Shipping Info
Shipping Info
*We currently CANNOT ship this product to California or any destination outside of the United States
  • Product Description
  • 1
    Reviews
  • 3
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Inflow
3/8
3/8" Threaded (Male)
Outflow
3/8
3/8" Threaded (Female)
Grade
Prosumer
Inflow
3/8" Threaded (Male)
Outflow
3/8" Threaded (Female)
Features
Features
  • Heavy Duty Powder Coated Steel High Pressure Hose Reel
  • Holds 100 feet of 3/8" high pressure hose
  • Solid center core for maximum strength
  • Rolled, beaded edge flanges prevent cuts and scrapes
  • Handy, Hard Working Features
  • Spring tension drag
  • “Posi-Pin” lock prevents unwanted de-reeling
  • Maximum temperature rating: 185° F; 5000psi maximum pressure
  • Easy access external swivel and 3/8" FPT Inlet/Outlet
  • Easy mounting options for maximum versatility
  • 3 ft pigtail high pressure hose included (D30003)
Specifications
Hose
Hose Diameter
3/8 Inch
Hose Connections
Threaded
Accessories
Accessory Grade
Prosumer
Inflow
3/8" Threaded (Male)
Outflow
3/8" Threaded (Female)
Rated PSI
5000 PSI
Overview
Weight
22 Pounds
Consumer Warranty
30 Days
Grade
Inflow
3/8
3/8" Threaded (Male)
Outflow
3/8
3/8" Threaded (Female)
Grade
Prosumer
Inflow
3/8" Threaded (Male)
Outflow
3/8" Threaded (Female)
Features
Features
  • Heavy Duty Powder Coated Steel High Pressure Hose Reel
  • Holds 100 feet of 3/8" high pressure hose
  • Solid center core for maximum strength
  • Rolled, beaded edge flanges prevent cuts and scrapes
  • Handy, Hard Working Features
  • Spring tension drag
  • “Posi-Pin” lock prevents unwanted de-reeling
  • Maximum temperature rating: 185° F; 5000psi maximum pressure
  • Easy access external swivel and 3/8" FPT Inlet/Outlet
  • Easy mounting options for maximum versatility
  • 3 ft pigtail high pressure hose included (D30003)
Specifications
Hose
Hose Diameter
3/8 Inch
Hose Connections
Threaded
Accessories
Accessory Grade
Prosumer
Inflow
3/8" Threaded (Male)
Outflow
3/8" Threaded (Female)
Rated PSI
5000 PSI
Overview
Weight
22 Pounds
Consumer Warranty
30 Days
Product Specs
+
Specifications
Hose
Hose Diameter
3/8 Inch
Hose Connections
Threaded
Accessories
Accessory Grade
Prosumer
Inflow
3/8" Threaded (Male)
Outflow
3/8" Threaded (Female)
Rated PSI
5000 PSI
Overview
Weight
22 Pounds
Consumer Warranty
30 Days
Reviews
(1)
+
General Pump DHR50100D Reviews & Ratings
Product Q&A
(3)
+
Search Product Q&A's Answered by Brian, the Pressure Washer Expert
icon-social-fb1
+
hello mike , i have a dewalt gas pressure washer 4200 psi. an want to put a hose reel on it . the model is the dxpw4240 , what reel do i need for 100ft. of 3/8 line ?
Robert Bock
from Pennsylvania
June 29, 2016
Answer
I checked with the folks at DeWalt Pressure Washers, and they don't currently have a hose reel available.

If the piece across the handle that holds the spray nozzles is metal, it might be sturdy enough to mount the General Pump DHR50100D Hose Reel. You would need the higher 5000 PSI rated reel instead of the 3500 PSI rated reel. since your pressure washer is 4200 PSI.

By "sturdy" I mean it needs to support not only the 22 pound reel, but the additional 30 pounds of hose as well.

Since the hose reel has a 3/8" female threaded (NPT) outlet and DXPW4240 uses quick connectors you will also need a 3/8" adapter to mate the two, depending on the gender of your quick connector.
+
Will this reel attatch to simpson WB4200
Lewis Keen
from Mississippi
June 25, 2015
Answer
If you look at the picture, the mounting base for this unit is smaller and square; it won't fit the spread of the handlebars on the WB4200.

Karcher Professional has a belt-drive 4200 PSI pressure washer that can accept their accessory 100' hose reel, if that would work for you. The Hose Reel is sold separately.
+
I purchased a Karcher G4000OH pressure washer. Do you sell a hose reel that will mount o this unit?
Dan Anderson
from Minnesota
April 17, 2011
Answer
This GP hose reel should be able to mount to the frame of your pressure washer with no problem. The hose reel DHR50100D comes with the mounting hardware required to mount this reel to a wall or cart.
